TIoT-3568HV RK3568 Dual-Screen 4K AIoT Controller Board with 1 TOPS NPU

High-Performance RK3568 Processor

The TIoT-3568HV uses the Rockchip RK3568 64-bit processor featuring four ARM Cortex-A55 CPU cores and a maximum frequency of up to 2.0 GHz. It provides efficient multitasking performance for large-screen display, multimedia and intelligent terminal applications.

Flexible Memory and Storage

The standard configuration includes 2 GB of memory and 64 GB of onboard storage. Memory capacities up to 8 GB and storage capacities up to 128 GB can be supported according to the selected hardware configuration.

Integrated 1 TOPS NPU

The independent neural processing unit provides up to 1 TOPS of AI computing performance, supporting compatible lightweight edge AI applications such as image recognition, intelligent analysis and terminal-side inference.

Dual-Screen Independent Display

The board supports display combinations using HDMI, LVDS and V-by-One interfaces. Compatible firmware and screen configurations can display different content on two screens for interactive advertising and intelligent self-service equipment.

Dual LVDS Display Output

Two LVDS interfaces support single-channel or dual-channel 6-bit and 8-bit configurations. They can directly drive compatible 50 Hz or 60 Hz LCD panels with resolutions up to 1920 × 1080.

4K V-by-One Output

One standard V-by-One output supports compatible ultra-high-definition LCD panels with resolutions up to 4K at 60 Hz, providing detailed image quality for large-format commercial displays.

Optional 4K HDMI Output

An optional standard Type-A HDMI output supports resolutions up to 4K × 2K at 60 Hz for external monitors, digital signage screens and compatible ultra-high-definition display equipment.

1080p HDMI Input

One standard Type-A HDMI input supports external video signals with resolutions up to 1080p at 60 Hz. It can connect computers, cameras, media players and other compatible HDMI sources.

Mainstream Touch-Screen Support

The board supports infrared, optical, capacitive, resistive and touch-film solutions. Compatible HID touch screens support driver-free plug-and-play operation without complicated debugging.

Powerful Graphics Processing

The integrated ARM Mali-G52 GPU provides efficient graphics rendering and multimedia acceleration for Android interfaces, high-definition video, digital signage content and interactive commercial applications.

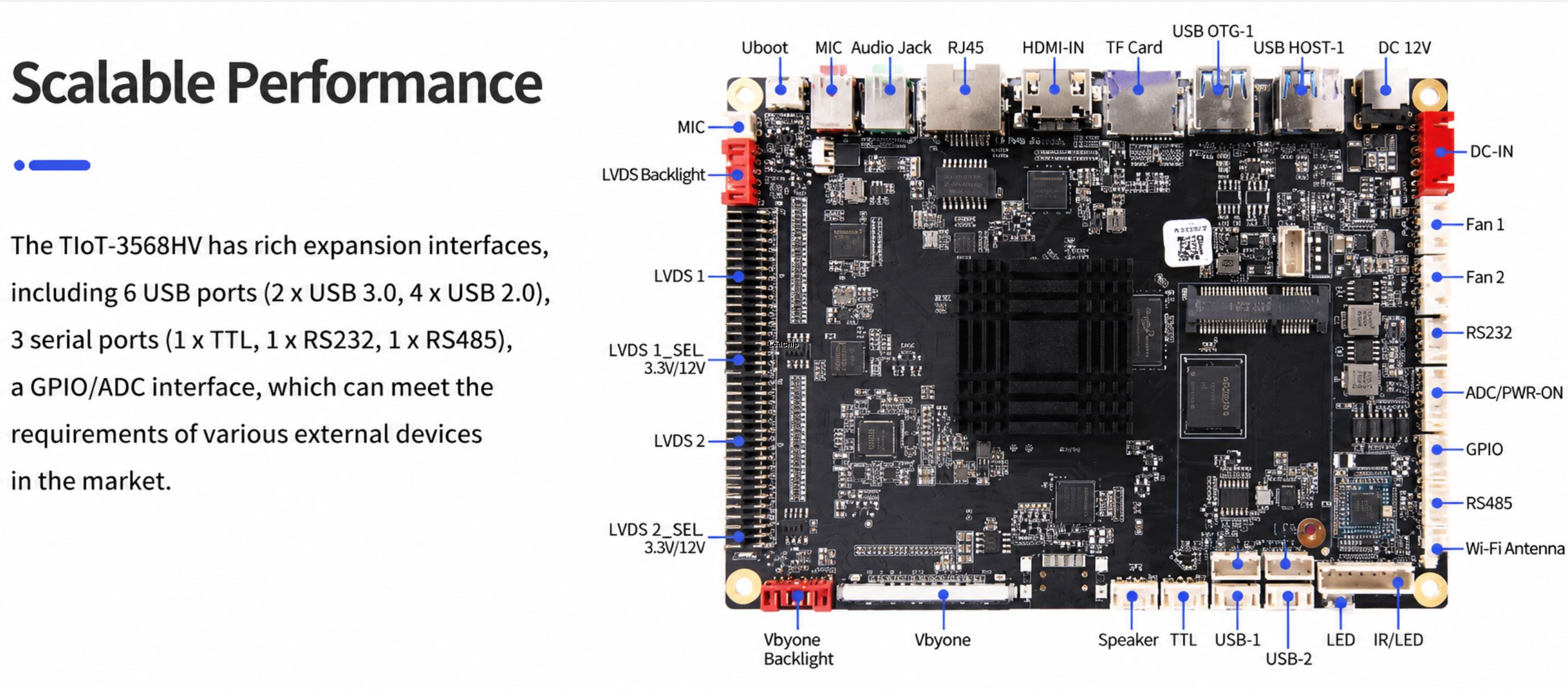

Six USB Interfaces

• 2 × USB 3.0 interfaces
• 4 × USB 2.0 interfaces
• USB storage support
• Camera and touch-device support
• Keyboard, scanner and peripheral support

Industrial Communication Interfaces

• 1 × RS232 serial interface
• 1 × TTL serial interface
• 1 × RS485 serial interface
• GPIO expansion interfaces
• ADC input interface
• TF card interface

Wired and Wireless Networking

The TIoT-3568HV supports 10/100 Mbps auto-negotiation Ethernet, built-in Wi-Fi and Bluetooth 4.2. A Mini PCI-E interface allows connection to a compatible 4G communication module.

Industrial-Grade Reliability

The board uses corrosion-resistant immersion-gold PCB processing and secure four-point mounting. It is designed to support stable continuous 7 × 24-hour operation under suitable installation and environmental conditions.

Dual Fan Interface Support

Two fan interfaces are available for terminal equipment with restricted airflow or demanding thermal conditions, helping improve heat dissipation and long-term operating stability.

System Customization

Android system customization, system APIs and reference code can be provided to support upper-layer APP development, peripheral control, AI function integration and customized project deployment.
