Silicon Labs WT32I-A-AI6-APTXC
- Part No.:
- WT32I-A-AI6-APTXC
- Manufacturer:
- Silicon Labs
- Category:
- RF Transceiver Modules and Modems
- Package:
- 50-SMD Module
- Datasheet:
-
WT32I-A-AI6-APTXC.pdf
- Description:
- RF TXRX MOD BLUETOOTH CHIP SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
WT32I-A-AI6-APTXC Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Silicon Labs
- Series:
- WT32I
- Package/Case:
- 50-SMD Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v3.0
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate:
- 4MBaud
- Power - Output:
- 6.5dBm
- Sensitivity:
- -91dBm
- Serial Interfaces:
- ADC, GPIO, I2C, I2S, PCM, PIO, SPI, UART, USB
- Antenna Type:
- Integrated, Chip
- Utilized IC / Part:
- BlueCore5
- Memory Size:
- 2MB Flash
- Voltage - Supply:
- 1.7V ~ 3.6V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
|
 |
 |

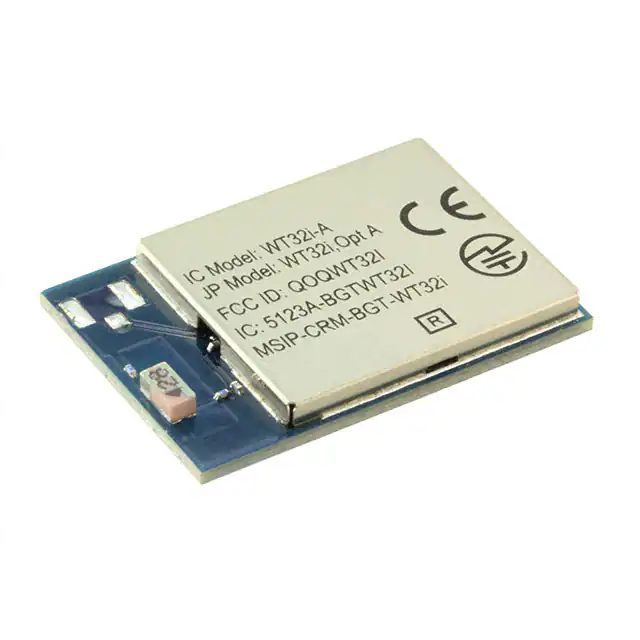

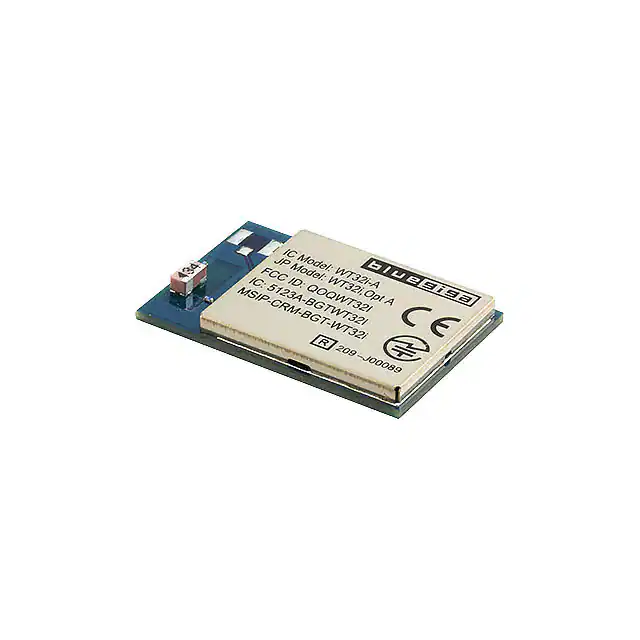

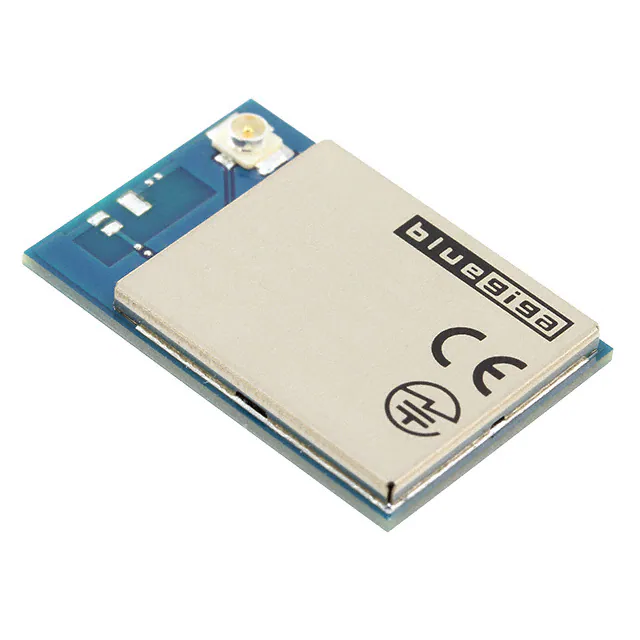

| Part Number | WT32I-E-AI6 | WT32I-E-AI6-APTX | WT32I-A-AI61B1079 | WT32I-A-AI6 | WT32I-A-AI61 |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Series | - | - | * | - | - |
| Package/Case | Module | Module | - | Module | Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Not For New Designs | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Bluetooth | Bluetooth | - | Bluetooth | Bluetooth |
| Protocol | Bluetooth v3.0 | Bluetooth v3.0 | - | Bluetooth v3.0 | Bluetooth v3.0 |
| Modulation | - | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | - | 2.4GHz | 2.4GHz |
| Data Rate | - | - | - | - | - |
| Power - Output | 6.5dBm | 8dBm | - | 6.5dBm | 6.5dBm |
| Sensitivity | -91dBm | -91dBm | - | -91dBm | -90dBm |
| Serial Interfaces | I2S, PIO, SPI, UART, USB | I2C, I2S, PCM, PIO, SPI, UART, USB | - | I2S, PIO, SPI, UART, USB | I2C, I2S, SPI, UART |
| Antenna Type | Antenna Not Included, U.FL | Antenna Not Included, U.FL | - | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | BlueCore5 | BlueCore5 | - | BlueCore5 | BlueCore5 |
| Memory Size | 16MB Flash | 16MB Flash | - | 16MB Flash | 16MB Flash |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.6V | - | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C |
