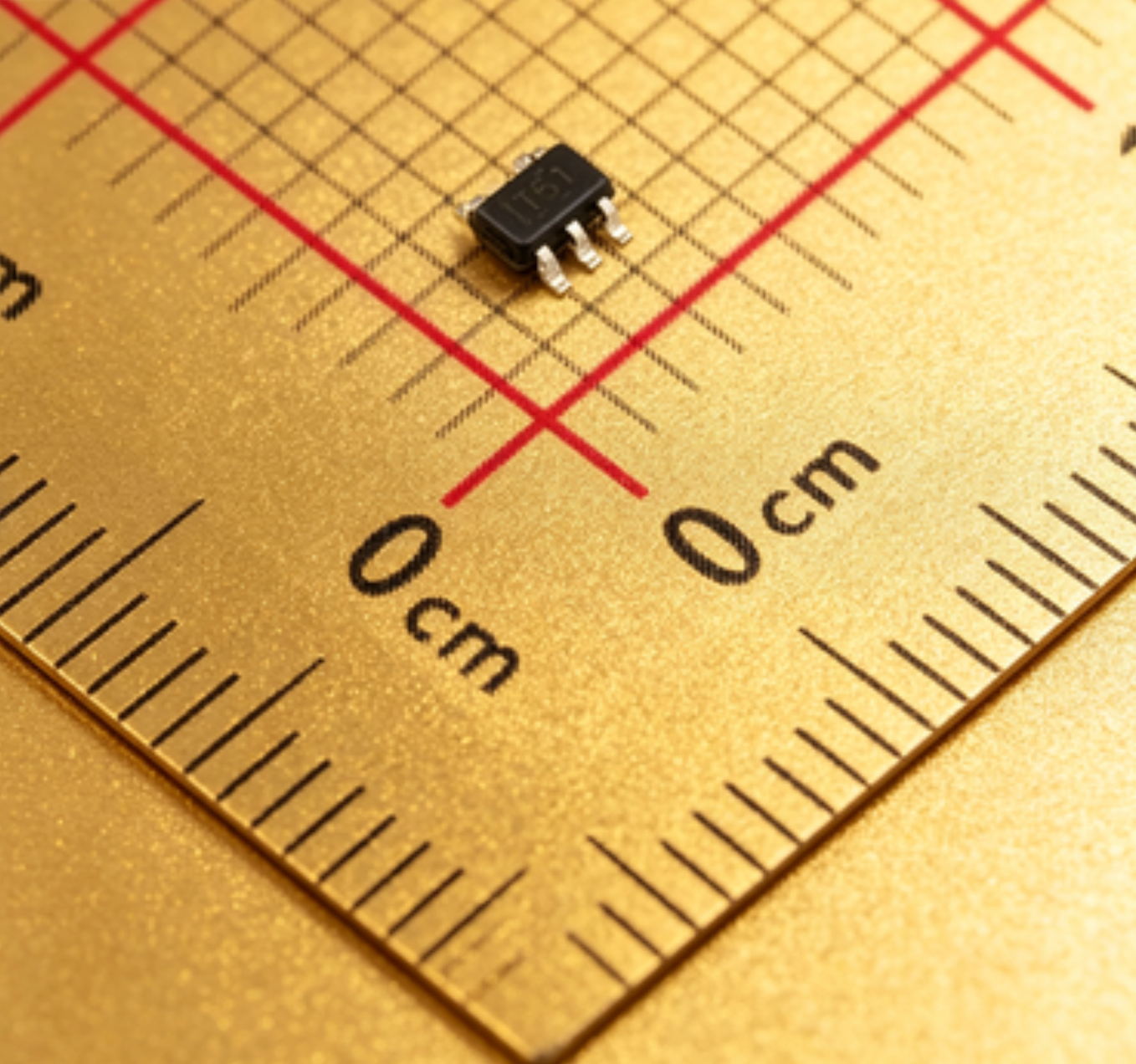

Texas Instruments TLV9051IDCKR
- Part No.:
- TLV9051IDCKR
- Manufacturer:
- Texas Instruments
- Category:
- Instrumentation, Op Amps, Buffer Amps
- Package:
- 5-TSSOP, SC-70-5, SOT-353
- Datasheet:
-
TLV9051IDCKR.pdf
- Description:
- IC OPAMP GP 1 CIRCUIT SC70-5
- Quantity:
Unit Price:$0.19
Ext Price:$570.00
- Payment:
- Shipping:
Product Details
TLV9051IDCKR - Low-Power Rail-to-Rail Operational Amplifier (SOT-23-5)
TLV9051IDCKR is a low-power, single-channel operational amplifier from Texas Instruments, featuring rail-to-rail input and output capability and excellent DC precision.
With low quiescent current and wide supply voltage range, it is ideal for portable electronics, sensor interfaces, and signal conditioning applications.
This page is for reference only. Please confirm specifications using the official datasheet.
Overview
TLV9051IDCKR belongs to TI's TLV905x family, optimized for low-power operation while maintaining high precision and stability.
The device provides rail-to-rail input/output performance, making it suitable for low-voltage systems and battery-powered designs.
Key Advantages
Typical quiescent current around 80µA
Maximizes dynamic range in low-voltage systems
Supports 2.7V to 5.5V operation
Small SOT-23-5 footprint for dense layouts
Feature Summary
1 (Single Op Amp)
~5 MHz
Low offset
Rail-to-rail output
Package & Footprint
The TLV9051IDCKR is offered in a SOT-23-5 surface-mount package.
- SOT-23-5 compact package
- Ideal for space-constrained designs
- Standard footprint for easy PCB integration

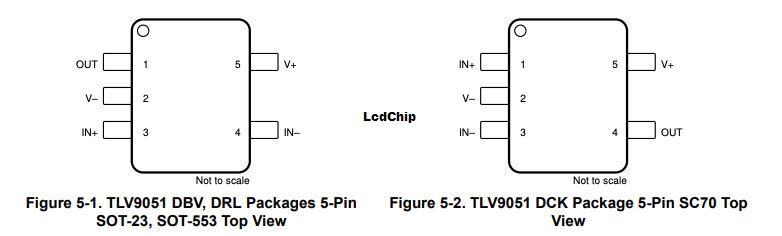

Pin Functions
Key Specifications
| Amplifier Type | General Purpose Op Amp |
|---|---|
| Channels | 1 |
| Supply Voltage | 2.7V – 5.5V |
| Quiescent Current | ~80µA |
| Bandwidth | 5 MHz |
| Package | SOT-23-5 |
Equivalent
Alternative parts for TLV9051IDCKR include:
- OPA344NA/3K (TI) – Functionally similar
- MCP6001T-I/OT (Microchip) – Pin-to-pin compatible
- LMV321IDBVR (TI) – Similar low-power op amp
- SGM8051XN5/TR (SG Micro) – Pin-to-pin compatible
Applications
Sensor Interfaces
Signal amplification and conditioning
Portable Devices
Battery-powered electronics
Industrial Systems
Precision analog processing
Consumer Electronics
Low-power analog circuits
FAQ
Is TLV9051 suitable for battery-powered devices?
Does it support rail-to-rail output?
TLV9051IDCKR Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Series:
- -
- Package/Case:
- 5-TSSOP, SC-70-5, SOT-353
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Amplifier Type:
- General Purpose
- Number of Circuits:
- 1
- Output Type:
- Rail-to-Rail
- Slew Rate:
- 15V/µs
- Gain Bandwidth Product:
- 5 MHz
- -3db Bandwidth:
- -
- Current - Input Bias:
- 2 pA
- Voltage - Input Offset:
- 330 µV
- Current - Supply:
- 330µA
- Current - Output / Channel:
- 50 mA
- Voltage - Supply Span (Min):
- 1.8 V
- Voltage - Supply Span (Max):
- 5.5 V
- Operating Temperature:
- -40°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SC-70-5
