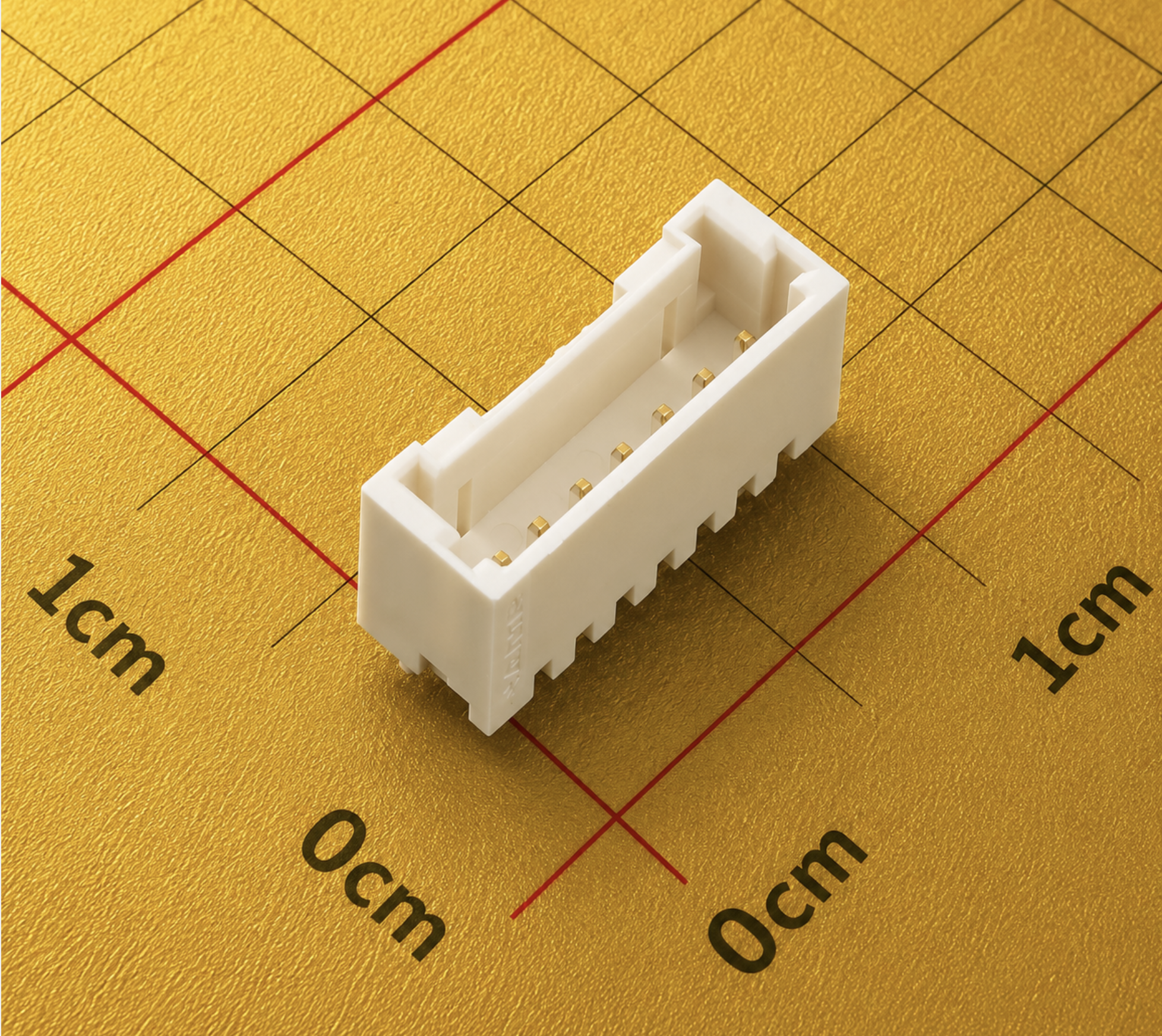

TE Connectivity AMP Connectors 292207-7
- Part No.:
- 292207-7
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- Headers, Male Pins
- Package:
- Description:
- CONN HEADER VERT 7POS 1.5MM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
292207-7 - TE Connectivity AMP Micro-MaTch Connector System
The 292207-7 is a high-reliability Micro-MaTch connector from TE Connectivity. Designed for wire-to-board applications, this connector system features a compact 1.27mm pitch and an innovative contact design that prevents fretting corrosion, making it an ideal solution for automotive, industrial, and consumer electronics where vibration resistance and high contact density are critical.
Product Overview
The AMP Micro-MaTch connector series (including the 292207-7) is engineered to solve the common issue of fretting corrosion in compact connectors. By using a "contact spring" design that compensates for vibrations and thermal expansion, it maintains a gas-tight connection over long periods.
About TE Connectivity
TE Connectivity is a global industrial technology leader creating a safer, sustainable, productive, and connected future. Their connectors are recognized for rigorous testing and long-term reliability in mission-critical applications.
Key Advantages
Prevents fretting corrosion.
High contact density for tight layouts.
Designed for cost-effective mass production.
Gas-tight connection integrity.

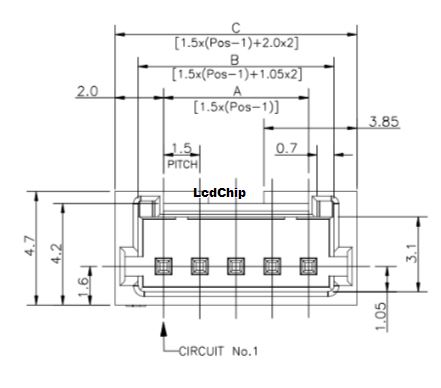

Package & Mechanical Details
(Connector Header)
Designed for PCB mounting with high-precision alignment pins.
- Connector Type: Header
- Mounting: Surface Mount / Through-Hole
Pin Functions & Terminal Map
The 292207-7 features a multi-pin header layout optimized for reliable signal/power distribution across 1.27mm grid arrays.
Technical Specifications
| Part Number | 292207-7 |
|---|---|
| Manufacturer | TE Connectivity |
| Pitch | 1.27 mm |
Equivalent & Replacement Guide
Direct replacement typically involves selecting from the same Micro-MaTch series.
- TE Micro-MaTch series: Ensure pin count and mounting style (SMD/TH) match your requirements.
Typical Applications
Automotive Control Modules
Industrial Control Systems
Quality & Authenticity
Certified to international industrial standards, ensuring long-term performance and material safety.
Frequently Asked Questions
Is this connector vibration-proof?
Yes, its contact design specifically mitigates fretting corrosion caused by vibration.What is the pitch of this connector?
The Micro-MaTch system utilizes a 1.27mm centerline pitch.Disclaimer
Technical details are for reference. Consult official TE Connectivity documentation for detailed drawings and assembly guides.
292207-7 Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- Mini CT
- Packaging:
- Bulk
- Product Status:
- Active
- Connector Type:
- Header
- Contact Type:
- Male Pin
- Pitch - Mating:
- 0.059" (1.50mm)
- Number of Positions:
- 7
- Number of Rows:
- 1
- Row Spacing - Mating:
- -
- Number of Positions Loaded:
- All
- Style:
- Board to Cable/Wire
- Shrouding:
- Shrouded - 4 Wall
- Mounting Type:
- Through Hole
- Termination:
- Kinked Pin, Solder
- Fastening Type:
- Detent Lock
- Contact Length - Mating:
- 0.094" (2.40mm)
- Contact Length - Post:
- 0.118" (3.00mm)
- Overall Contact Length:
- 0.307" (7.80mm)
- Insulation Height:
- 0.272" (6.91mm)
- Contact Shape:
- Square
- Contact Finish - Mating:
- Tin
- Contact Finish - Post:
- Tin
- Contact Material:
- Brass
- Insulation Material:
- Polyamide (PA), Nylon, Glass Filled
- Features:
- Board Guide
- Current Rating (Amps):
- Varies by Wire Gauge
