TDK Corporation TLA-8T101WLF-T
- Part No.:
- TLA-8T101WLF-T
- Manufacturer:
- TDK Corporation
- Category:
- Pulse Transformers
- Package:
- Description:
- MOD PULSE TRANSFORMER SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TLA-8T101WLF-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- TLA-8T
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Transformer Type:
- LAN
- Inductance:
- 100µH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1CT:1CT Transmitter, 1CT:5CT Receiver
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.457" L x 0.256" W (11.60mm x 6.50mm)
- Height - Seated (Max):
- 0.232" (5.90mm)
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
| Image |  |
|
|
|
|

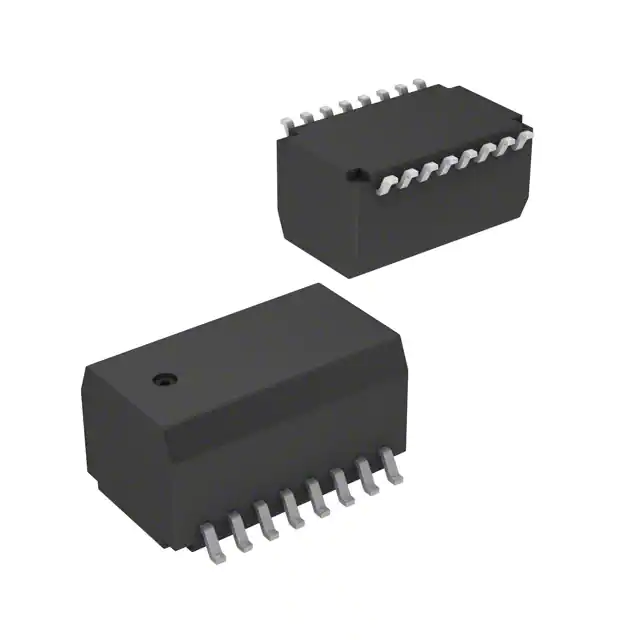

| Part Number | TLA-3T108LF | TLA-3T105LF | TLA-3T106LF | TLA-6T120LF | TLA-6T121LF |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Series | TLA | TLA | TLA | TLA | TLA |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Transformer Type | LAN | LAN | LAN | LAN | LAN |
| Inductance | 75µH | 130µH | 130µH | 350µH | 350µH |
| ET (Volt-Time) | - | - | - | - | - |
| Turns Ratio - Primary:Secondary | 1:1 | 1CT:1CT | 1:1 | 2CT:1CT, 1CT:1CT | 1CT:1.41CT, 1CT:1CT |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.457" L x 0.268" W (11.60mm x 6.80mm) |
| Height - Seated (Max) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) | 0.232" (5.90mm) |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
