Ferroxcube T107/65/18-3F3
- Part No.:
- T107/65/18-3F3
- Manufacturer:
- Ferroxcube
- Category:
- Ferrite Cores
- Package:
- Datasheet:
-
T107/65/18-3F3.pdf
- Description:
- Ferrite Misc
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
T107/65/18-3F3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Ferroxcube
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Core Type:
- Toroid
- Supplier Device Package:
- T 107 x 65 x 18
- Material:
- 3F3
- Diameter:
- 4.213" (107.00mm)
- Inductance Factor (Al):
- -
- Tolerance:
- -
- Gap:
- Ungapped
- Effective Permeability (µe):
- -
- Initial Permeability (µi):
- -
- Core Factor (ΣI/A) mm⁻¹:
- 0.7
- Effective Length (le) mm:
- 259.0
- Effective Area (Ae) mm²:
- 370.0
- Minimum Core Cross Section (Amin) mm²:
- -
- Effective Magnetic Volume (Ve) mm³:
- 96000.0
- Finish:
- Epoxy
- Height:
- 0.709" (18.00mm)
- Length:
- -
- Width:
- -
| Image |  |
 |
|
|
|

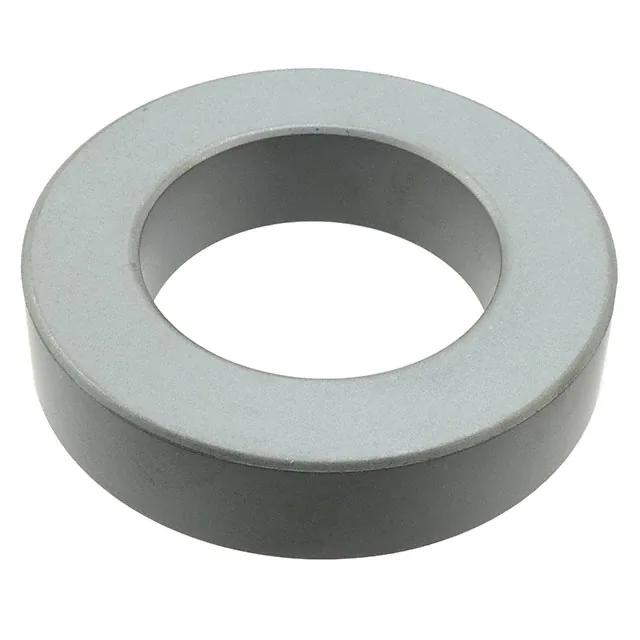

| Part Number | T107/65/25-3C94 | T107/65/25-3E27 | T107/65/18-3C90 | T107/65/18-3C94 | T107/65/18-3E27 |
| Manufacturer | Ferroxcube | Ferroxcube | Ferroxcube | Ferroxcube | Ferroxcube |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Core Type | Toroid | Toroid | Toroid | Toroid | Toroid |
| Supplier Device Package | - | - | T 107 x 65 x 18 | T 107 x 65 x 18 | T 107 x 65 x 18 |
| Material | 3C94 | 3E27 | 3C90 | 3C94 | 3E27 |
| Diameter | 4.213" (107.00mm) | 4.213" (107.00mm) | 4.213" (107.00mm) | 4.213" (107.00mm) | 4.213" (107.00mm) |
| Inductance Factor (Al) | - | - | - | 4.13 µH | 9.87 µH |
| Tolerance | - | - | - | ±25% | ±25% |
| Gap | Ungapped | Ungapped | Ungapped | Ungapped | Ungapped |
| Effective Permeability (µe) | - | - | - | 2300.0 | 5500.0 |
| Initial Permeability (µi) | - | - | - | - | - |
| Core Factor (ΣI/A) mm⁻¹ | 0.504 | 0.504 | 0.7 | 0.7 | 0.7 |
| Effective Length (le) mm | 259.0 | 259.0 | 259.0 | 259.0 | 259.0 |
| Effective Area (Ae) mm² | 514.0 | 514.0 | 370.0 | 370.0 | 370.0 |
| Minimum Core Cross Section (Amin) mm² | - | - | - | - | - |
| Effective Magnetic Volume (Ve) mm³ | 133000.0 | 133000.0 | 96000.0 | 96000.0 | 96000.0 |
| Finish | Uncoated | Uncoated | Epoxy | Epoxy | Epoxy |
| Height | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.709" (18.00mm) | 0.709" (18.00mm) | 0.709" (18.00mm) |
| Length | - | - | - | - | - |
| Width | - | - | - | - | - |
