KEMET SS28H-20075-CH
- Part No.:
- SS28H-20075-CH
- Manufacturer:
- KEMET
- Category:
- Common Mode Chokes
- Package:
- Vertical, 4 PC Pin
- Description:
- CMC 7.5MH 2A 2LN TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SS28H-20075-CH Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KEMET
- Package/Case:
- Vertical, 4 PC Pin
- Filter Type:
- Power Line
- Number of Lines:
- 2
- Impedance @ Frequency:
- -
- Current Rating (Max):
- 7.5 mH @ 1 kHz
- DC Resistance (DCR) (Max):
- 2A
- Voltage Rating - DC:
- 220mOhm
- Voltage Rating - AC:
- -
- Operating Temperature:
- 250V
- Ratings:
- -25°C ~ 120°C
- Approval Agency:
- -
- Features:
- -
- Mounting Type:
- -
- Size / Dimension:
- -
- Height (Max):
- -

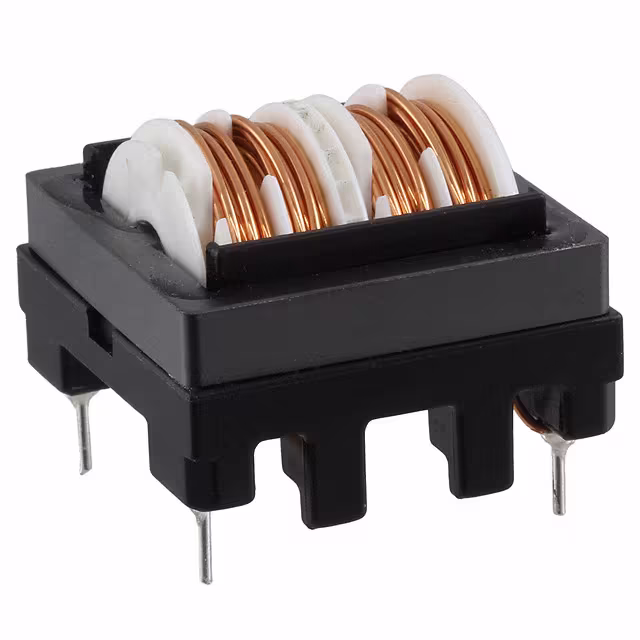

| Image |  |
 |
 |
 |
| Part Number | SS28H-R10450-CH | SS28H-R25080-CH | SS28H-R20130-CH | SS28H-20075-CH |
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Package/Case | Vertical, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin |
| Filter Type | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 2 | 2 | 2 | 2 |
| Impedance @ Frequency | - | - | - | - |
| Current Rating (Max) | 45 mH @ 1 kHz | 8 mH @ 1 kHz | 13 mH @ 1 kHz | 7.5 mH @ 1 kHz |
| DC Resistance (DCR) (Max) | 1A | 2.5A | 2A | 2A |
| Voltage Rating - DC | 650mOhm | 160mOhm | 220mOhm | 220mOhm |
| Voltage Rating - AC | - | - | - | - |
| Operating Temperature | 250V | 250V | 250V | 250V |
| Ratings | -25°C ~ 120°C | -25°C ~ 120°C | -25°C ~ 120°C | -25°C ~ 120°C |
| Approval Agency | - | - | - | - |
| Features | - | - | - | - |
| Mounting Type | - | - | - | - |
| Size / Dimension | - | - | - | - |
| Height (Max) | - | - | - | - |
