KEMET SCR-050-0R9A070J
- Part No.:
- SCR-050-0R9A070J
- Manufacturer:
- KEMET
- Category:
- Common Mode Chokes
- Package:
- Horizontal, 4 PC Pin
- Description:
- CMC 7MH 5A 2LN TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SCR-050-0R9A070J Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KEMET
- Package/Case:
- Horizontal, 4 PC Pin
- Filter Type:
- Power Line
- Number of Lines:
- 2
- Impedance @ Frequency:
- -
- Current Rating (Max):
- 7 mH @ 10 kHz
- DC Resistance (DCR) (Max):
- 5A
- Voltage Rating - DC:
- 47mOhm
- Voltage Rating - AC:
- 250V
- Operating Temperature:
- 250V
- Ratings:
- -25°C ~ 120°C
- Approval Agency:
- -
- Features:
- -
- Mounting Type:
- -
- Size / Dimension:
- -
- Height (Max):
- -
| Image |  |
 |
|
 |
 |

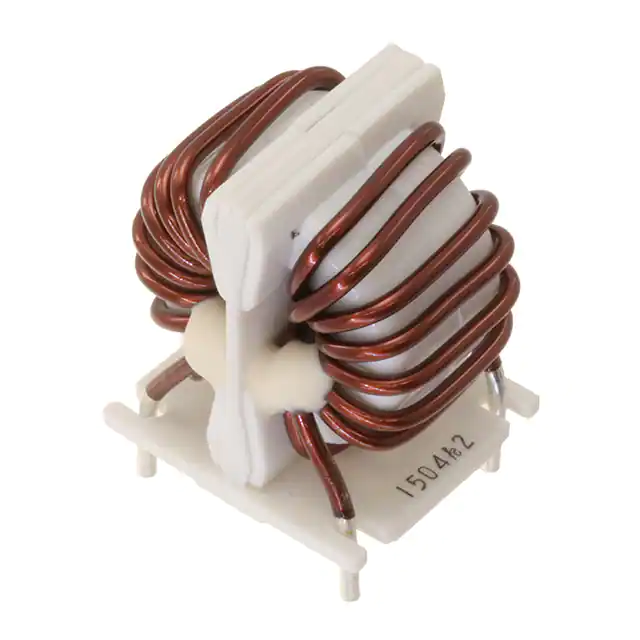

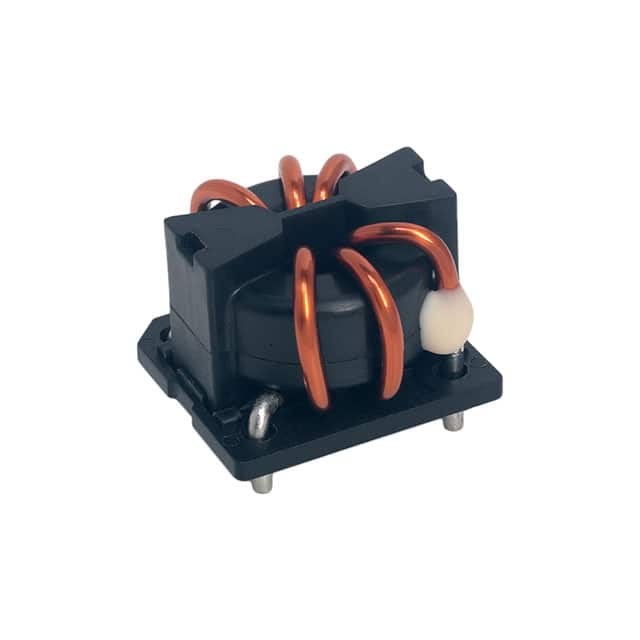

| Part Number | SCR-050-0R9A070J | SCR19XV-100-1R1A009JV | SCR-070-1R0A030J | SCR-150-1R4A006J-P | SCR19XV-300-1R9A003JH |
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Package/Case | Horizontal, 4 PC Pin | Vertical, 4 PC Pin | Horizontal, 4 PC Pin | Vertical, 4 PC Pin | Horizontal, 4 PC Pin |
| Filter Type | Power Line | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 2 | 2 | 2 | 2 | 2 |
| Impedance @ Frequency | - | - | - | - | - |
| Current Rating (Max) | 7 mH @ 10 kHz | 500 µH @ 100 kHz | 3 mH @ 10 kHz | 600 µH @ 10 kHz | 56 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 5A | 10A | 7A | 15A | 30A |
| Voltage Rating - DC | 47mOhm | 6.03mOhm | 23mOhm | 5.3mOhm | 0.767mOhm |
| Voltage Rating - AC | 250V | 1000V (1kV) | 250V | 250V | 1000V (1kV) |
| Operating Temperature | 250V | 1000V (1kV) | 250V | 250V | 1000V (1kV) |
| Ratings | -25°C ~ 120°C | -40°C ~ 120°C | -25°C ~ 120°C | 25°C ~ 120°C | -40°C ~ 120°C |
| Approval Agency | - | AEC-Q200 | - | - | AEC-Q200 |
| Features | - | - | - | - | - |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | - | - | - | - | - |
| Height (Max) | - | - | - | - | - |
