KEMET SCF25-08-1300
- Part No.:
- SCF25-08-1300
- Manufacturer:
- KEMET
- Category:
- Common Mode Chokes
- Package:
- Vertical, No Base, 4 PC Pin
- Description:
- CMC 13MH 8A 2LN TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SCF25-08-1300 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KEMET
- Package/Case:
- Vertical, No Base, 4 PC Pin
- Filter Type:
- Power Line
- Number of Lines:
- 2
- Impedance @ Frequency:
- -
- Current Rating (Max):
- 13 mH @ 10 kHz
- DC Resistance (DCR) (Max):
- 8A
- Voltage Rating - DC:
- 18mOhm
- Voltage Rating - AC:
- 250V
- Operating Temperature:
- 250V
- Ratings:
- -40°C ~ 120°C
- Approval Agency:
- -
- Features:
- -
- Mounting Type:
- -
- Size / Dimension:
- -
- Height (Max):
- -
| Image |  |
 |
|
|
|

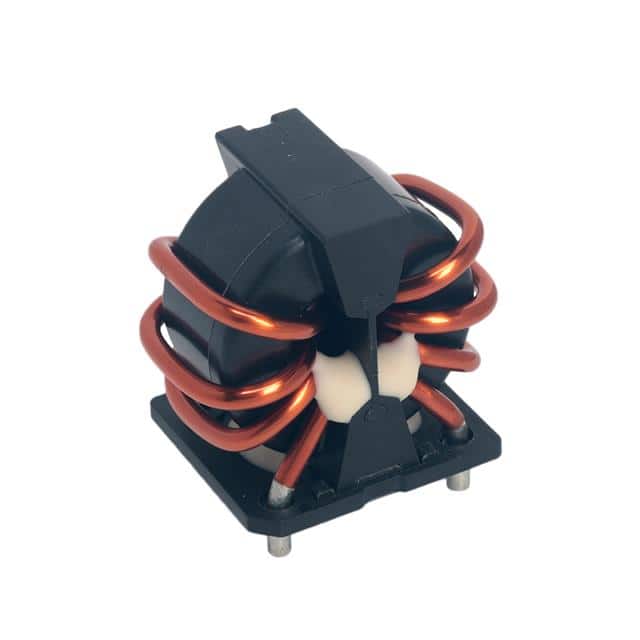

| Part Number | SCF25-08-1300 | SCF25XV-220-1R9A007JV | SCF25XV-050-1R0A027JV | SCF25XV-310-2R3A004JV | SCF25XV-070-1R1A022JV |
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Package/Case | Vertical, No Base, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin |
| Filter Type | Power Line | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 2 | 2 | 2 | 2 | 2 |
| Impedance @ Frequency | - | - | - | - | - |
| Current Rating (Max) | 13 mH @ 10 kHz | 1.2 mH @ 100 kHz | 17.8 mH @ 100 kHz | 400 µH @ 100 kHz | 11.8 mH @ 100 kHz |
| DC Resistance (DCR) (Max) | 8A | 22A | 5A | 31A | 7A |
| Voltage Rating - DC | 18mOhm | 2.35mOhm | 30.59mOhm | 0.95mOhm | 20.83mOhm |
| Voltage Rating - AC | 250V | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Operating Temperature | 250V | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Ratings | -40°C ~ 120°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Approval Agency | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - | - | - |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | - | - | - | - | - |
| Height (Max) | - | - | - | - | - |
