KEMET SCF19XV-080-1R0A011JH
- Part No.:
- SCF19XV-080-1R0A011JH
- Manufacturer:
- KEMET
- Category:
- Common Mode Chokes
- Package:
- Horizontal, 4 PC Pin
- Description:
- CMC 1.5MH 8A 2LN TH AEC-Q200
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SCF19XV-080-1R0A011JH Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KEMET
- Package/Case:
- Horizontal, 4 PC Pin
- Filter Type:
- Power Line
- Number of Lines:
- 2
- Impedance @ Frequency:
- -
- Current Rating (Max):
- 1.5 mH @ 100 kHz
- DC Resistance (DCR) (Max):
- 8A
- Voltage Rating - DC:
- 8.98mOhm
- Voltage Rating - AC:
- 1000V (1kV)
- Operating Temperature:
- 1000V (1kV)
- Ratings:
- -40°C ~ 150°C
- Approval Agency:
- AEC-Q200
- Features:
- -
- Mounting Type:
- -
- Size / Dimension:
- -
- Height (Max):
- -
| Image |  |
|
|
 |
|

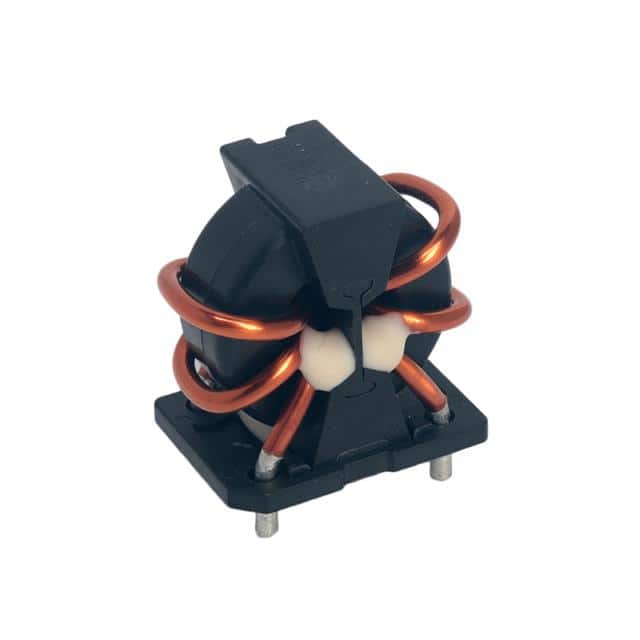

| Part Number | SCF19XV-080-1R0A011JH | SCF19XV-150-1R3A006JH | SCF19XV-220-1R6A004JH | SCF19XV-080-1R0A011JV | SCF19XV-150-1R3A006JV |
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Package/Case | Horizontal, 4 PC Pin | Horizontal, 4 PC Pin | Horizontal, 4 PC Pin | Vertical, 4 PC Pin | Vertical, 4 PC Pin |
| Filter Type | Power Line | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 2 | 2 | 2 | 2 | 2 |
| Impedance @ Frequency | - | - | - | - | - |
| Current Rating (Max) | 1.5 mH @ 100 kHz | 440 µH @ 100 kHz | 200 µH @ 100 kHz | 1.5 mH @ 100 kHz | 440 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 8A | 15A | 22A | 8A | 15A |
| Voltage Rating - DC | 8.98mOhm | 3.01mOhm | 1.43mOhm | 8.7mOhm | 2.91mOhm |
| Voltage Rating - AC | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Operating Temperature | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) |
| Ratings | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Approval Agency | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | - | - | - | - | - |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | - | - | - | - | - |
| Height (Max) | - | - | - | - | - |
