KEMET SC22-05-30JH
- Part No.:
- SC22-05-30JH
- Manufacturer:
- KEMET
- Category:
- Common Mode Chokes
- Package:
- Horizontal, 4 PC Pin
- Description:
- CMC 3MH 5A 2LN TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
SC22-05-30JH Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- KEMET
- Package/Case:
- Horizontal, 4 PC Pin
- Filter Type:
- Power Line
- Number of Lines:
- 2
- Impedance @ Frequency:
- -
- Current Rating (Max):
- 3 mH @ 10 kHz
- DC Resistance (DCR) (Max):
- 5A
- Voltage Rating - DC:
- -
- Voltage Rating - AC:
- 250V
- Operating Temperature:
- 250V
- Ratings:
- -40°C ~ 120°C
- Approval Agency:
- -
- Features:
- -
- Mounting Type:
- -
- Size / Dimension:
- -
- Height (Max):
- -
| Image |  |
 |
 |
 |
|

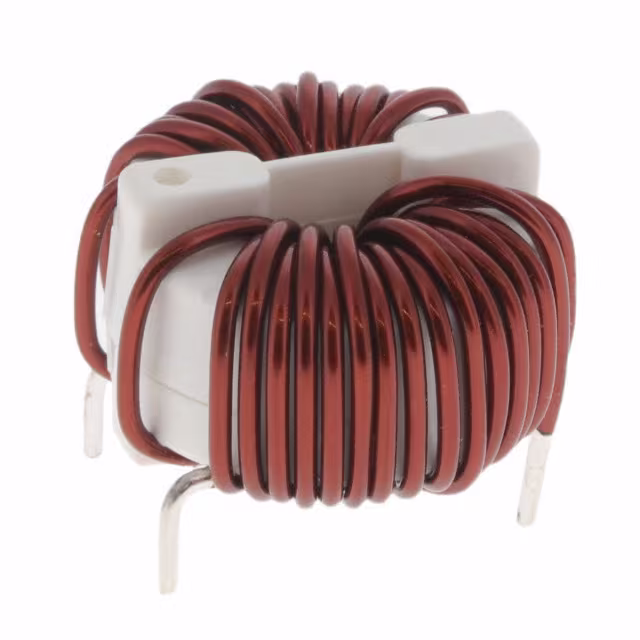

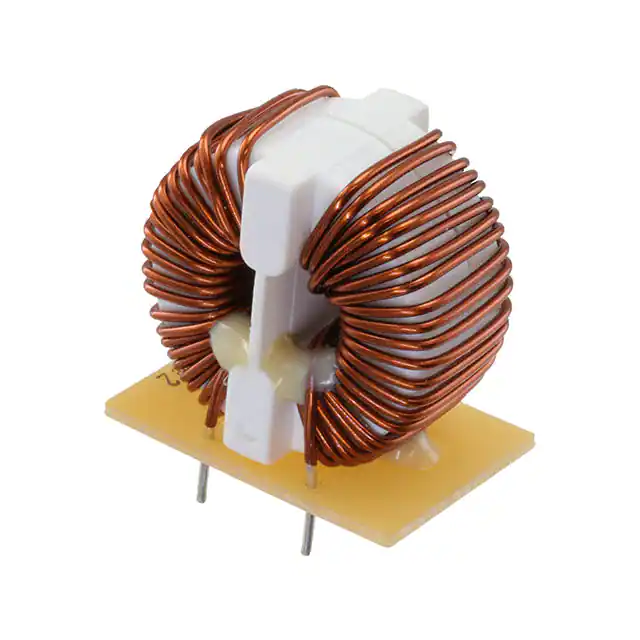

| Part Number | SC22-05-30J | SC22-08-100 | SC22-04-95H | SC22-06-70JH | SC22-025-290J |
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Package/Case | Vertical, 4 PC Pin | Horizontal, No Base, 4 PC Pin | Horizontal, No Base, 4 PC Pin | Horizontal, 4 PC Pin | Vertical, 4 PC Pin |
| Filter Type | Power Line | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 2 | 2 | 2 | 2 | 2 |
| Impedance @ Frequency | - | - | - | - | - |
| Current Rating (Max) | 3 mH @ 10 kHz | 1 mH @ 10 kHz | 9.45 mH @ 10 kHz | 7 mH @ 10 kHz | 29 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 5A | 8A | 4.3A | 6A | 2.5A |
| Voltage Rating - DC | 50mOhm | 20mOhm | 80mOhm | - | 250mOhm |
| Voltage Rating - AC | 250V | 250V | 250V | 250V | 250V |
| Operating Temperature | 250V | 250V | 250V | 250V | 250V |
| Ratings | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
| Approval Agency | - | - | - | - | - |
| Features | - | - | - | - | - |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | - | - | - | - | - |
| Height (Max) | - | - | - | - | - |
