Amphenol Piher Sensing Systems PT10MH01-503A2020
- Part No.:
- PT10MH01-503A2020
- Manufacturer:
- Amphenol Piher Sensing Systems
- Category:
- Trimmer Potentiometers
- Package:
- Datasheet:
-
PT10MH01-503A2020.pdf
- Description:
- PT10MH 50K / 20% / carbon trimme
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PT10MH01-503A2020 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol Piher Sensing Systems
- Series:
- PT-10
- Packaging:
- Bulk
- Product Status:
- Active
- Resistance:
- 50 kOhms
- Power (Watts):
- 0.15W
- Tolerance:
- ±20%
- Temperature Coefficient:
- ±300ppm/°C
- Number of Turns:
- 1.0
- Adjustment Type:
- Side Adjustment
- Resistive Material:
- Carbon
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pins
- Size / Dimension:
- Round - 0.406" Dia x 0.476" H (10.30mm x 12.10mm)
| Image |  |
 |
 |
|
 |

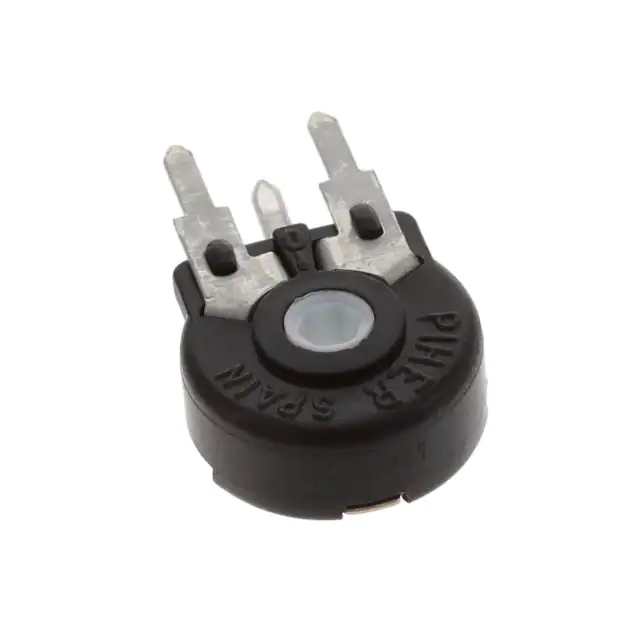

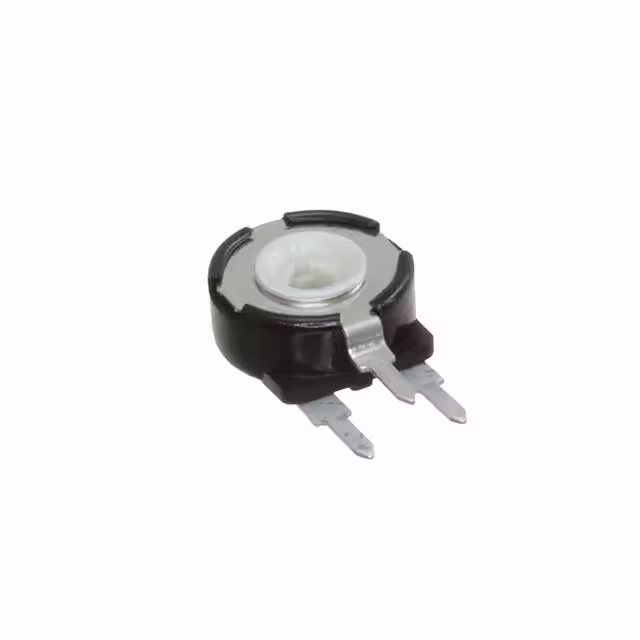

| Part Number | PT10MH01-103A2020-S | PT10MH01-104A2020-S | PT10MH01-473A2020-S | PT10MH01-503A2020-S | PT10MH01-104A2020-I-PM-S |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| Series | PT10 | PT10 | PT10 | PT10 | PT10 |
| Packaging | - | - | - | - | - |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 10 kOhms | 100 kOhms | 47 kOhms | 50 kOhms | 100 kOhms |
| Power (Watts) | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Resistive Material | Carbon | Carbon | Carbon | Carbon | Carbon |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Size / Dimension | Round - 0.406" Dia (10.30mm) | Round - 0.406" Dia (10.30mm) | Round - 0.406" Dia (10.30mm) | Round - 0.406" Dia (10.30mm) | Round - 0.406" Dia (10.30mm) |
