Telit Cinterion PLS63-X4 REL.1.1
- Part No.:
- PLS63-X4 REL.1.1
- Manufacturer:
- Telit Cinterion
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
PLS63-X4 REL.1.1.pdf
- Description:
- RF TXRX MOD CELL NAV SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PLS63-X4 REL.1.1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Telit Cinterion
- Series:
- Cinterion PLS63
- Package/Case:
- Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular, Navigation
- Protocol:
- BeiDou, Galileo, GLONASS, GNSS, GPS, GPRS, LTE
- Modulation:
- -
- Frequency:
- 850MHz, 900MHz, 1.8GHz, 1.9GHz
- Data Rate:
- 480Mbps
- Power - Output:
- -
- Sensitivity:
- -
- Serial Interfaces:
- ADC, GPIO, I2C, I2S, PCM, PWM, SPI, USB
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- PLS63
- Memory Size:
- -
- Voltage - Supply:
- 3V ~ 4.5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 95°C
| Image |  |
|
 |
|
|

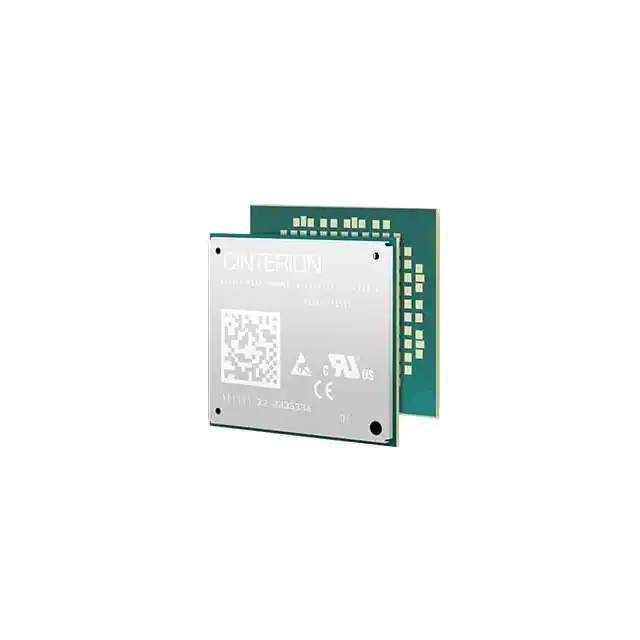

| Part Number | PLS63-W REL.1.2 | PLS63-X REL.1.2 | PLS63-W REL.1.1 | PLS63-X4 REL.1.2 | PLS63-X3 REL.1.2 |
| Manufacturer | Telit Cinterion | Telit Cinterion | Telit Cinterion | Telit Cinterion | Telit Cinterion |
| Series | Cinterion PLS63-W | Cinterion® PLSx3 | Cinterion PLS63-W | Cinterion® PLSx3 | Cinterion® PLSx3 |
| Package/Case | 156-SMD Module | 156-SMD Module | Module | 156-SMD Module | 156-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Not For New Designs | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation |
| Protocol | 2G, 3G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE | BeiDou, Galileo, GLONASS, GNSS, GPS, GSM, GPRS, LTE, UMTS, WCDMA | 2G, 3G, BeiDou, Galileo, GLONASS, GNSS, GPS | Beidou, Galileo, GLONASS, GPS, GNSS, LTE | Beidou, Galileo, GLONASS, GPS, GNSS, LTE |
| Modulation | - | 8PSK | - | 8PSK | 8PSK |
| Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 600MHz, 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 700MHz, 2.1GHz | 700MHz, 1.9GHz, 2.1GHz |
| Data Rate | 480Mbps | 10Mbps | 10.2Mbps | 150Mbps | 150Mbps |
| Power - Output | - | 33dBm | - | 33dBm | 33dBm |
| Sensitivity | - | - | - | -102.2dBm | -102.2dBm |
| Serial Interfaces | I2C, I2S, PCM, USB | ADC, GPIO, I2C, I2S, PCM, PWM, SPI, USB | I2C, I2S, PCM, USB | ADC, GPIO, I2C, I2S, PCM, UART | ADC, GPIO, I2C, I2S, PCM, UART |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | - | - | - | - | - |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | 3V ~ 4.5V | 3V ~ 4.5V | 3V ~ 4.5V | 3V ~ 4.5V | 3V ~ 4.5V |
| Current - Receiving | - | - | - | 139mA ~ 2.9A | 139mA ~ 2.9A |
| Current - Transmitting | - | - | - | 139mA ~ 2.9A | 139mA ~ 2.9A |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 95°C | -30°C ~ 85°C | -40°C ~ 95°C | -30°C ~ 85°C | -30°C ~ 85°C |
