NimbeLink, LLC NL-SW-LTE-SRC7611-4NGV
- Part No.:
- NL-SW-LTE-SRC7611-4NGV
- Manufacturer:
- NimbeLink, LLC
- Category:
- RF Transceiver Modules and Modems
- Package:
- 20-DIP Module
- Datasheet:
-
NL-SW-LTE-SRC7611-4NGV.pdf
- Description:
- RF TXRX MOD CELL U.FL TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
NL-SW-LTE-SRC7611-4NGV Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NimbeLink, LLC
- Series:
- -
- Package/Case:
- 20-DIP Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular
- Protocol:
- 4G LTE CAT-4 (Verizon)
- Modulation:
- -
- Frequency:
- 617MHz ~ 2.2GHz
- Data Rate:
- 150Mbps
- Power - Output:
- 23dBm
- Sensitivity:
- -98dBm
- Serial Interfaces:
- UART, USB
- Antenna Type:
- Antenna Not Included, U.FL
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 3V ~ 5.5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Through Hole
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
|
|
 |
|

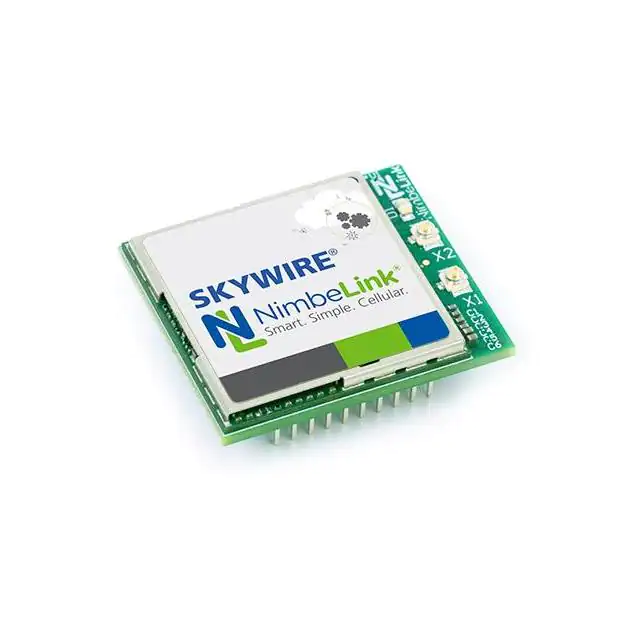

| Part Number | NL-SW-LTE-TG1WWG | NL-SW-LTE-QBG95-D | NL-SW-LTE-QBG96-C | NL-SW-LTE-TC4NAG-B | NL-SW-LTE-TC4WWG |
| Manufacturer | NimbeLink, LLC | NimbeLink, LLC | NimbeLink, LLC | NimbeLink, LLC | NimbeLink, LLC |
| Series | - | Skywire® | Skywire® CAT M1/NBIOT | - | Skywire® |
| Package/Case | 20-DIP Module | 20-DIP Module | 20-DIP Module | 20-DIP Module | 20-DIP Module |
| Packaging | Box | Box | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | - | - | Not Verified | Not Verified |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation | Cellular | Cellular, Navigation |
| Protocol | BeiDou, Galileo, GLONASS, GPS, LTE | BeiDou, Galileo, GLONASS, GNSS, GPS, GSM, LTE | BeiDou, Galileo, GLONASS, GNSS, GPS, LTE | 4G LTE CAT-4 (AT&T/Verizon), HSPA+ | BeiDou, Galileo, GLONASS, GNSS, GPS, LTE |
| Modulation | - | - | - | - | - |
| Frequency | 1.559GHz ~ 1.61GHz | - | 1.559GHz ~ 1.609GHz | 600MHz, 700MHz, 850MHz, 1.7GHz, 1.9GHz | - |
| Data Rate | 1Mbps | 375kbps | 375kbps | 150Mbps | 150Mbps |
| Power - Output | 33dBm | 33dBm | 23dBm | 23.5dBm | 23.5dBm |
| Sensitivity | -116.8dBm | -107dBm | -157dBm | -112dBm | -112dBm |
| Serial Interfaces | UART, USB | GPIO, UART, USB | GPIO, UART, USB | UART, USB | UART, USB |
| Antenna Type | Antenna Not Included | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Antenna Not Included, U.FL |
| Utilized IC / Part | - | BG95-M3 | BG96 | - | - |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | 3.4V ~ 4.2V | 3.4V ~ 4.3V | 3.4V ~ 4.3V | 3.4V ~ 4.2V | 3.4V ~ 4.2V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
