Raytac MDBT42Q-AT
- Part No.:
- MDBT42Q-AT
- Manufacturer:
- Raytac
- Category:
- RF Transceiver Modules and Modems
- Package:
- 39-SMD Module
- Description:
- RF TXRX MODULE BT CHIP SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MDBT42Q-AT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Raytac
- Series:
- -
- Package/Case:
- 39-SMD Module
- Packaging:
- Bag
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v5.2
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate:
- 2Mbps
- Power - Output:
- 4dBm
- Sensitivity:
- -96dBm
- Serial Interfaces:
- UART
- Antenna Type:
- Integrated, Chip
- Utilized IC / Part:
- nRF52810
- Memory Size:
- 192kB Flash, 24kB RAM
- Voltage - Supply:
- 1.7V ~ 3.6V
- Current - Receiving:
- 3.5mA ~ 11.2mA
- Current - Transmitting:
- 2.1mA ~ 15.4mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C (TA)
| Image |  |
|
 |
 |
 |

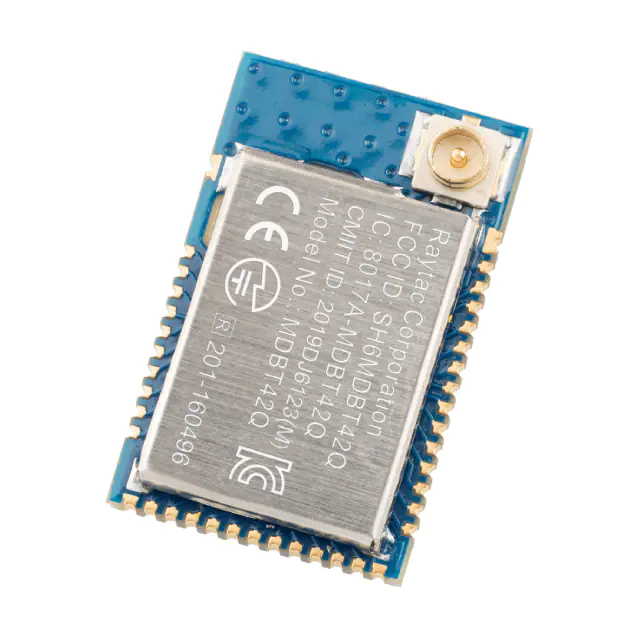

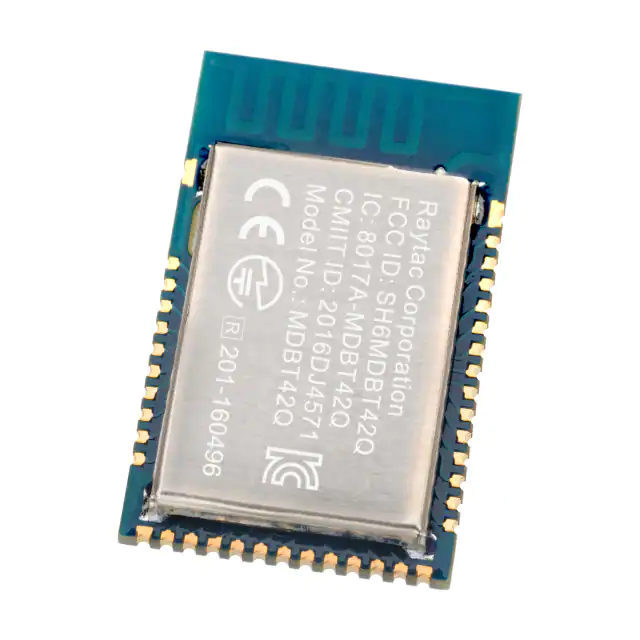

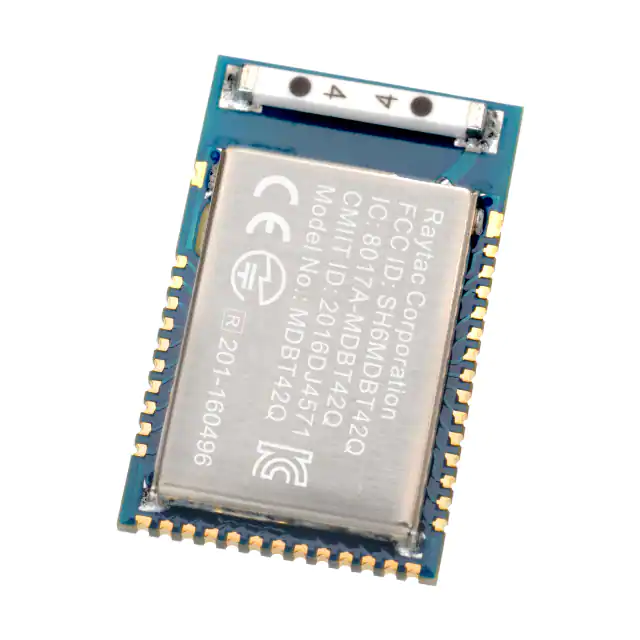

| Part Number | MDBT42Q-PAT2 | MDBT42Q-192KV2 | MDBT42Q-512KV2 | MDBT42Q-P512KV2 | MDBT42Q-U512KV2 |
| Manufacturer | Raytac | Raytac | Raytac | Raytac | Raytac |
| Series | MDBT42Q-PAT2 | MDBT42Q | - | - | - |
| Package/Case | 39-SMD Module | 41-SMD Module | 41-SMD Module | 41-SMD Module | 41-SMD Module |
| Packaging | Retail Package | Retail Package | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Bluetooth | Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.4 | Bluetooth v5.4 | Bluetooth v5.4, Zigbee® | Bluetooth v5.4, Zigbee® | Bluetooth v5.4, Thread, Zigbee® |
| Modulation | - | - | - | - | - |
| Frequency | 2.36GHz ~ 2.5GHz | 2.36GHz ~ 2.5GHz | 2.36GHz ~ 2.5GHz | 2.36GHz ~ 2.5GHz | 2.36GHz ~ 2.5GHz |
| Data Rate | 2Mbps | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 4dBm | 4dBm | 4dBm | 4dBm | 8dBm |
| Sensitivity | -96dBm | -104dBm | -96dBm | -96dBm | -103dBm |
| Serial Interfaces | GPIO, UART | GPIO, I2C, PWM, SPI, UART | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART | GPIO, I2C, SPI, UART, USB |
| Antenna Type | PCB Trace | Integrated, Chip | Integrated, Chip | PCB Trace | Antenna Not Included, U.FL |
| Utilized IC / Part | nRF52810 | nRF52811 | nRF52832 | nRF52832 | nRF52832 |
| Memory Size | 192kB Flash, 24kB RAM | 192kB Flash, 24kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 64kB Flash, 8kB RAM |
| Voltage - Supply | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V |
| Current - Receiving | 3.5mA ~ 11.2mA | 3.5mA ~ 11.2mA | 3.5mA ~ 12.9mA | 3.5mA ~ 12.9mA | 3.5mA ~ 12.9mA |
| Current - Transmitting | 2.1mA ~ 15.4mA | 2.1mA ~ 15.4mA | 2.7mA ~ 16.6mA | 2.7mA ~ 16.6mA | 2.7mA ~ 16.6mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
