u-blox LARA-R211-03B
- Part No.:
- LARA-R211-03B
- Manufacturer:
- u-blox
- Category:
- RF Transceiver Modules and Modems
- Package:
- 100-SMD Module
- Datasheet:
-
LARA-R211-03B.pdf
- Description:
- RF TXRX MOD CELL CAST IOT SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LARA-R211-03B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- u-blox
- Series:
- LARA-R2
- Package/Case:
- 100-SMD Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular
- Protocol:
- 2G, 4G LTE
- Modulation:
- QPSK
- Frequency:
- 800MHz, 900MHz, 1.8GHz, 2.6GHz
- Data Rate:
- 10.3Mbps
- Power - Output:
- 33dBm
- Sensitivity:
- -111.5dBm
- Serial Interfaces:
- GPIO, I2C, SDIO, UART, USB
- Antenna Type:
- Antenna Not Included, Castellation
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 3.3V ~ 4.4V
- Current - Receiving:
- 50mA ~ 540mA
- Current - Transmitting:
- 50mA ~ 540mA
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
|
 |
|
|

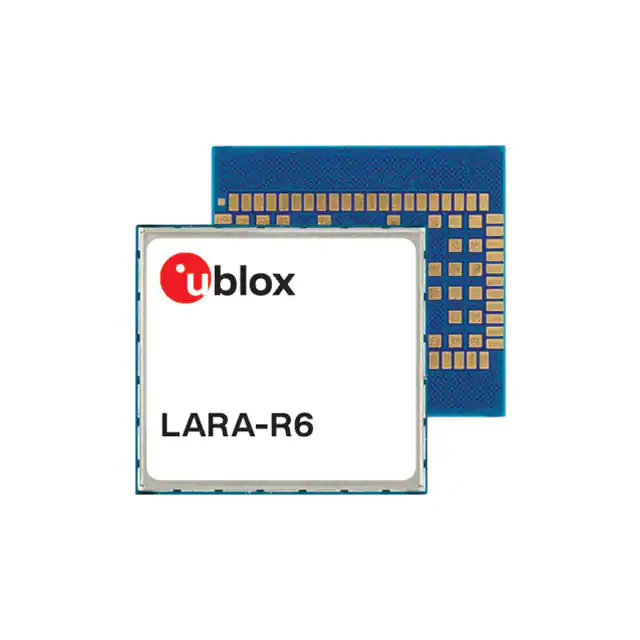

| Part Number | LARA-R6001-00B | LARA-R6001D-00B | LARA-R6001D-01B | LARA-L6004D-01B | LARA-L6004D-00B |
| Manufacturer | u-blox | u-blox | u-blox | u-blox | u-blox |
| Series | LARA-R6 | LARA-R6 | LARA-R6 | LARA-L6 | LARA-L6 |
| Package/Case | 100-SMD Module | 100-SMD Module | 100-SMD Module | 100-SMD Module | 100-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | - | - | - |
| RF Family/Standard | Cellular | Cellular | Cellular, Navigation | Cellular, Navigation | Cellular, Navigation |
| Protocol | GSM, LTE, WCDMA | GSM, LTE, WCDMA | CDMA, EDGE, GNSS, GPRS, GSM, HSDPA, HSPA, HSUPA, LTE, UMTS, WCDMA | EDGE, GNSS, GPRS, GSM, HSDPA, HSPA, HSUPA, LTE, UMTS | GNSS, GSM, LTE, UMTS |
| Modulation | GMSK, QPSK, PSK | GMSK, QPSK, PSK | GMSK, QPSK | - | - |
| Frequency | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.6GHz | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.6GHz | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.6GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Data Rate | 10.3Mbps | 10.3Mbps | 10.3Mbps | 150Mbps | 150Mbps |
| Power - Output | 33dBm | 33dBm | 33dBm | - | - |
| Sensitivity | -110dBm | -110dBm | -115dBm | - | - |
| Serial Interfaces | GPIO, I2C, UART, USB | GPIO, I2C, UART, USB | GPIO, I2C, I2S, UART, USB | GPIO, I2C, UART, USB | GPIO, I2C, I2S, UART, USB |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | - | - | - | - | - |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | 2.8V ~ 4.5V | 2.8V ~ 4.5V | 2.8V ~ 4.5V | 3.3V ~ 4.5V | 3.3V ~ 4.5V |
| Current - Receiving | 50mA ~ 630mA | 50mA ~ 630mA | 1.1mA ~ 650mA | - | - |
| Current - Transmitting | 50mA ~ 630mA | 50mA ~ 630mA | 200mA ~ 1.5A | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
