Sierra Wireless HL8548-G_1104160
- Part No.:
- HL8548-G_1104160
- Manufacturer:
- Sierra Wireless
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Datasheet:
-
HL8548-G_1104160.pdf
- Description:
- RF TXRX MOD CELL NAV SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HL8548-G_1104160 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sierra Wireless
- Series:
- HL - AirPrime®
- Package/Case:
- Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular, Navigation
- Protocol:
- EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA
- Modulation:
- -
- Frequency:
- 850MHz, 900MHz, 1.8GHz, 1.9GHz
- Data Rate:
- 7.2Mbps
- Power - Output:
- -
- Sensitivity:
- -
- Serial Interfaces:
- ADC, GPIO, UART, USB
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- -
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
 |
|
|

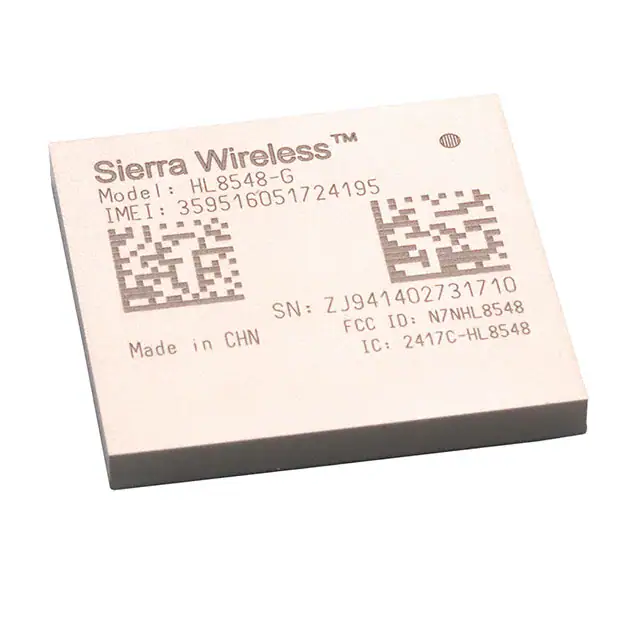

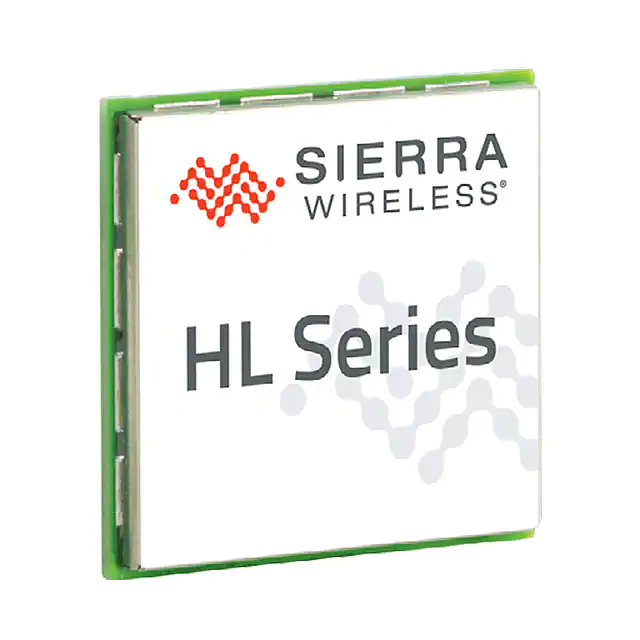

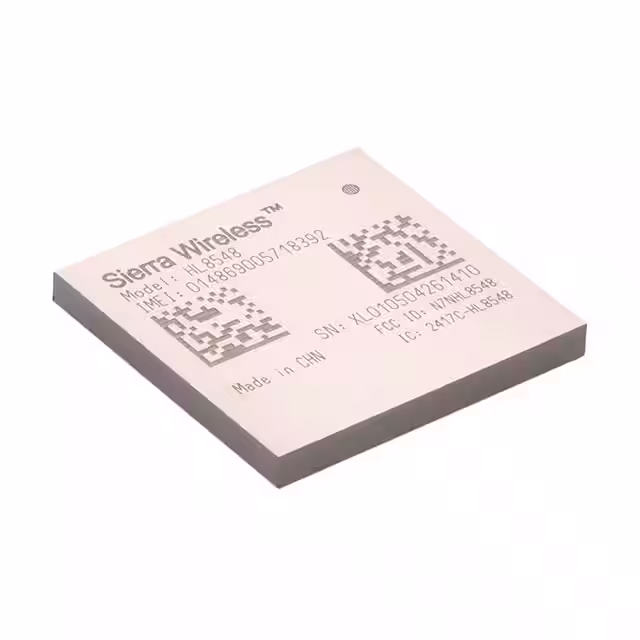

| Part Number | HL8548-G_1103969 | HL8548_1103971 | HL8548_1102810 | HL8548_1102149 | HL8548-G_1102150 |
| Manufacturer | Sierra Wireless | Sierra Wireless | Sierra Wireless | Sierra Wireless | Sierra Wireless |
| Series | HL - AirPrime® | HL - AirPrime® | HL - AirPrime® | HL - AirPrime® | HL - AirPrime® |
| Package/Case | 146-LGA Module | 146-LGA Module | 146-LGA Module | Module | Module |
| Packaging | Strip | Strip | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation | Cellular | Cellular | Cellular |
| Protocol | EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA | EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA | 3G (AT&T) | EDGE, GLONASS, GPRS, GPS, GSM, GNSS | EDGE, GLONASS, GPRS, GPS, GSM, HSDPA, HSUPA, UMTS |
| Modulation | - | - | - | - | - |
| Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Data Rate | 7.2Mbps | 7.2Mbps | - | 10Mbps | 7.2Mbps |
| Power - Output | - | - | - | - | 23dBm |
| Sensitivity | - | - | - | - | -162dBm |
| Serial Interfaces | ADC, GPIO, UART, USB | ADC, GPIO, UART, USB | UART, USB | UART, USB | I2C, PWM, SPI, UART, USB |
| Antenna Type | Antenna Not Included | Antenna Not Included | - | - | - |
| Utilized IC / Part | - | - | - | - | - |
| Memory Size | - | - | - | - | - |
| Voltage - Supply | - | - | 3.2V ~ 4.5V | - | 3.2V ~ 4.5V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | - | - | 475mA | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
