onsemi FDG6323L-F169
- Part No.:
- FDG6323L-F169
- Manufacturer:
- onsemi
- Package:
- 6-TSSOP, SC-88, SOT-363
- Datasheet:
-
FDG6323L-F169.pdf
- Description:
- IC PWR DRIVER P-CHANNEL 1:1 SC88
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FDG6323L-F169 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Package/Case:
- 6-TSSOP, SC-88, SOT-363
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Switch Type:
- General Purpose
- Number of Outputs:
- 1
- Ratio - Input:Output:
- 1:1
- Output Configuration:
- High Side
- Output Type:
- P-Channel
- Interface:
- On/Off
- Voltage - Load:
- 2.5V ~ 8V
- Voltage - Supply (Vcc/Vdd):
- 1.5V ~ 8V
- Current - Output (Max):
- -
- Rds On (Typ):
- 410mOhm
- Input Type:
- Non-Inverting
- Features:
- Slew Rate Controlled
- Fault Protection:
- -
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SC-70-6

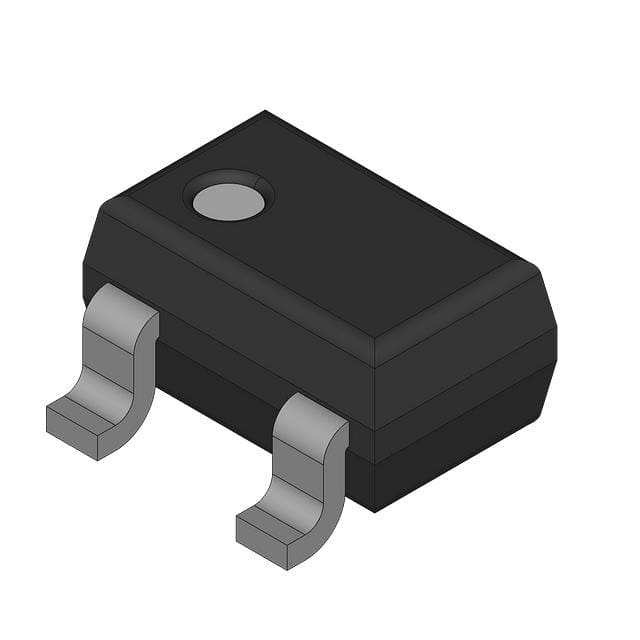

| Image |  |
 |
|
| Part Number | FDG6323L | FDG6323L_D87Z | FDG6323L-F169 |
| Manufacturer | onsemi | onsemi | onsemi |
| Package/Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Series | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | P-Channel | P-Channel | P-Channel |
| Interface | On/Off | On/Off | On/Off |
| Voltage - Load | 2.5V ~ 8V | 2.5V ~ 8V | 2.5V ~ 8V |
| Voltage - Supply (Vcc/Vdd) | 1.5V ~ 8V | 1.5V ~ 8V | 1.5V ~ 8V |
| Current - Output (Max) | 600mA | 600mA | - |
| Rds On (Typ) | 410mOhm | 410mOhm | 410mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Slew Rate Controlled | Slew Rate Controlled | Slew Rate Controlled |
| Fault Protection | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) | SC-88 (SC-70-6) | SC-70-6 |
