onsemi FCPF190N60
- Part No.:
- FCPF190N60
- Manufacturer:
- onsemi
- Category:
- FETs, MOSFETs
- Package:
- TO-220-3 Full Pack
- Datasheet:
-
FCPF190N60.pdf
- Description:
- MOSFET N-CH 600V 20.2A TO220F
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details

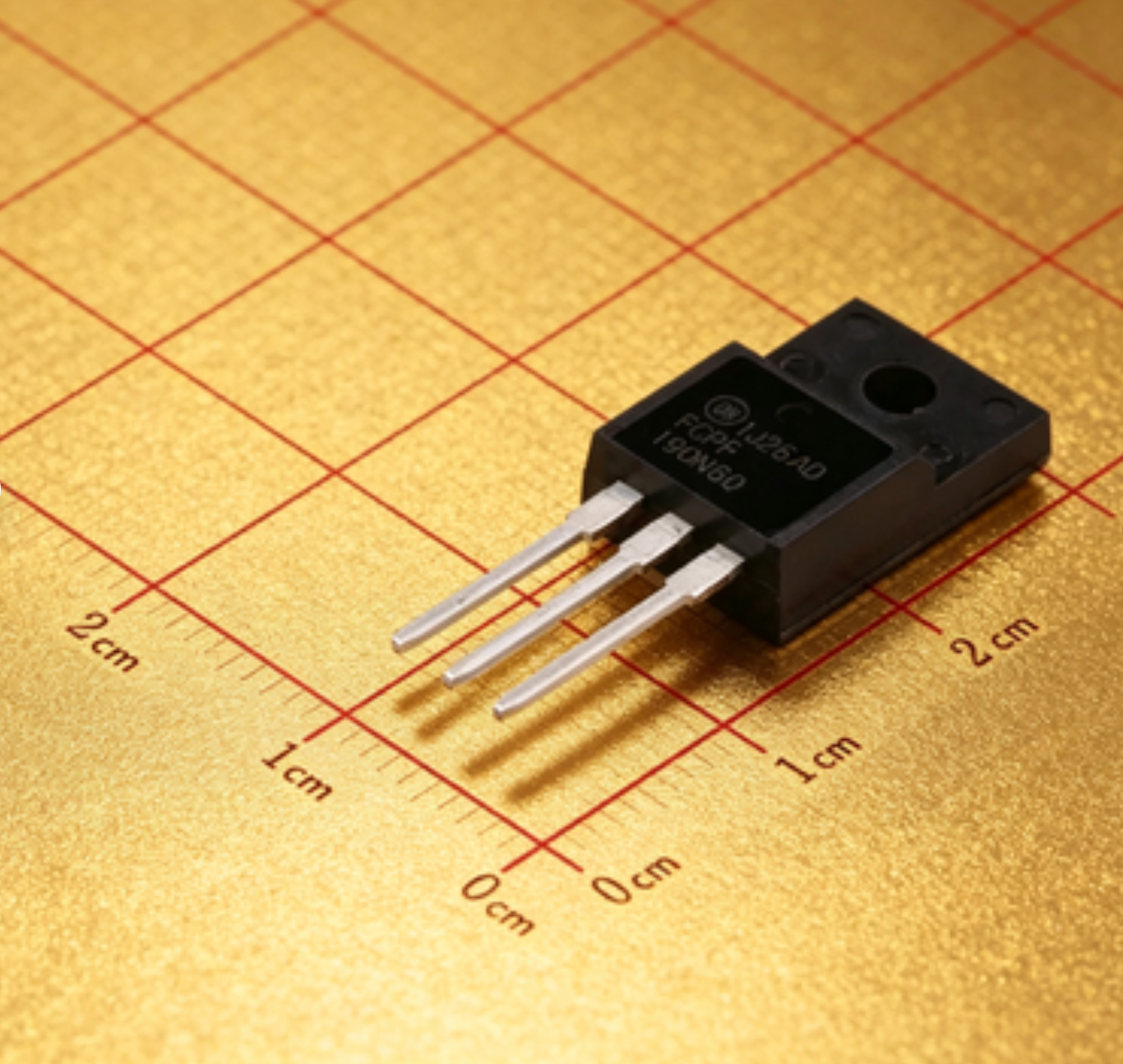

FCPF190N60 - 600V N-Channel Power MOSFET (TO-220)
FCPF190N60 is a high-voltage N-channel power MOSFET from ON Semiconductor, designed for efficient switching in power conversion and high-voltage applications.
It features low on-resistance, fast switching characteristics, and robust avalanche capability, making it ideal for SMPS, PFC circuits, and industrial power systems.
This page is for reference only. Please verify all parameters using the official datasheet.
Overview
FCPF190N60 is part of ON Semiconductor's high-voltage MOSFET family, optimized for high-efficiency switching applications.
Its 600V rating and robust current capability make it suitable for offline power supplies, motor drives, and inverter systems.
Key Advantages
600V breakdown voltage for high-power systems
Reduces conduction losses and improves efficiency
Suitable for high-frequency switching circuits
High avalanche energy capability
Feature Summary
600V
N-Channel MOSFET
Planar MOSFET
Power switching

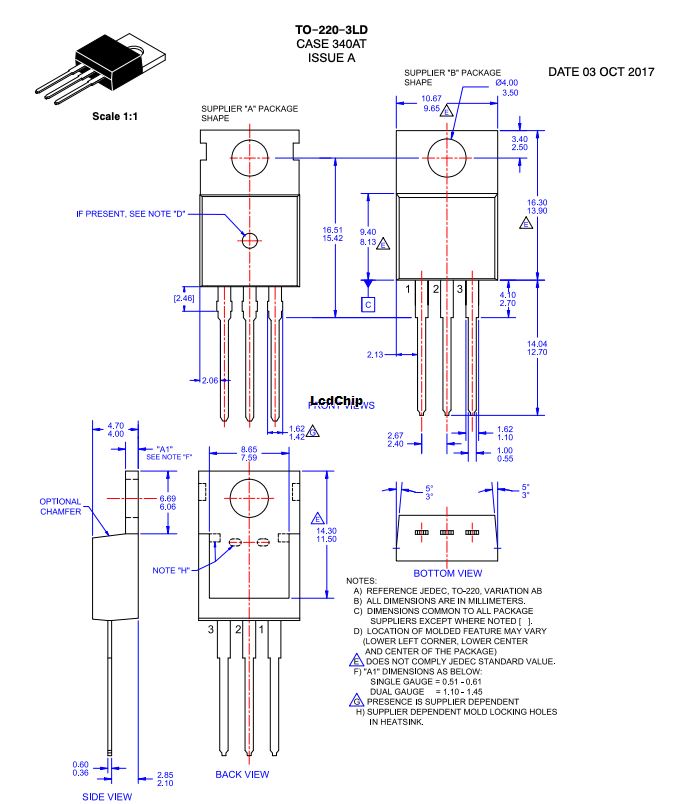

Package & Footprint
The FCPF190N60 is packaged in a TO-220 through-hole package.
- TO-220 package
- Excellent thermal performance
- Easy mounting with heatsink
Pin Functions
Key Specifications
| Type | N-Channel MOSFET |
|---|---|
| Vds | 600V |
| Package | TO-220 |
| Application | Power switching |
Equivalent
Alternative parts for FCPF190N60 include:
- CS20N60A8R (CR Micro) – Pin-to-pin compatible
- CS16N60A8R (CR Micro) – Functionally similar
- CS12N60A8R (CR Micro) – Functionally similar
- CS10N60A8R (CR Micro) – Functionally similar
- CR12N60A8K (CR Micro) – Functionally similar
Applications
Switching Power Supplies
AC-DC and DC-DC converters
PFC Circuits
Power factor correction systems
Motor Drives
Industrial motor control
Inverters
Power conversion systems
FAQ
Is FCPF190N60 suitable for high-frequency switching?
Can it be replaced by domestic brands?
FCPF190N60 Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- SuperFET® II
- Package/Case:
- TO-220-3 Full Pack
- Packaging:
- Tube
- Product Status:
- Active
- FET Type:
- N-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 600 V
- Current - Continuous Drain (Id) @ 25°C:
- 20.2A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):
- 10V
- Rds On (Max) @ Id, Vgs:
- 199mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id:
- 3.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 74 nC @ 10 V
- Vgs (Max):
- ±20V
- Input Capacitance (Ciss) (Max) @ Vds:
- 2950 pF @ 25 V
- FET Feature:
- -
- Power Dissipation (Max):
- 39W (Tc)
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- TO-220F-3
- Include Parts
