Panasonic Electronic Components EVM-3VSX50BC4
- Part No.:
- EVM-3VSX50BC4
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Trimmer Potentiometers
- Package:
- Datasheet:
-
EVM-3VSX50BC4.pdf
- Description:
- TRIMMER 15K OHM 0.15W SMD TOP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EVM-3VSX50BC4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- EVM
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Resistance:
- 15 kOhms
- Power (Watts):
- 0.15W
- Tolerance:
- ±25%
- Temperature Coefficient:
- ±250ppm/°C
- Number of Turns:
- 1.0
- Adjustment Type:
- Top Adjustment
- Resistive Material:
- Cermet
- Mounting Type:
- Surface Mount
- Termination Style:
- Surface Mount
- Size / Dimension:
- -
| Image |  |
 |
 |
 |
 |

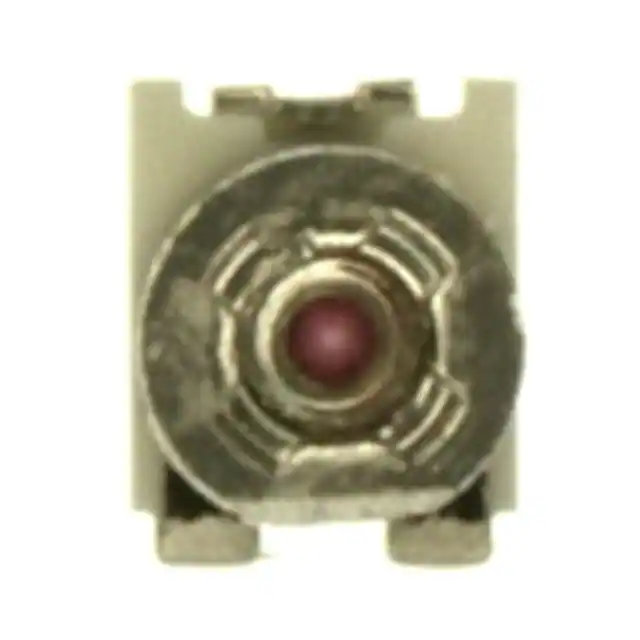

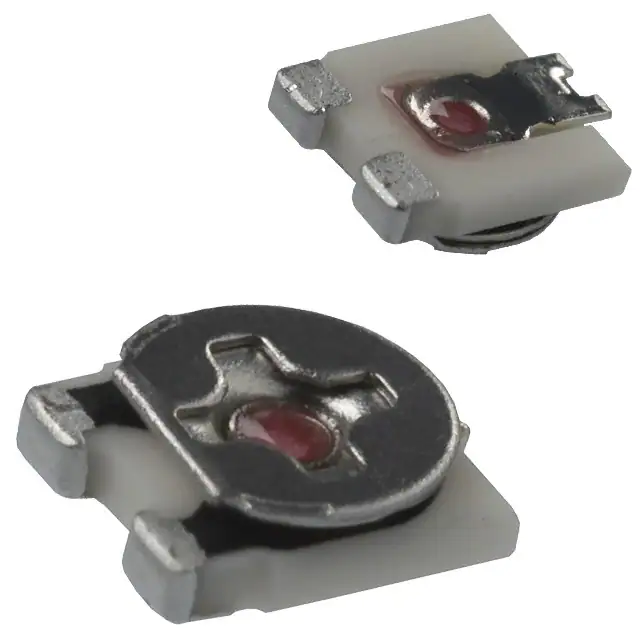

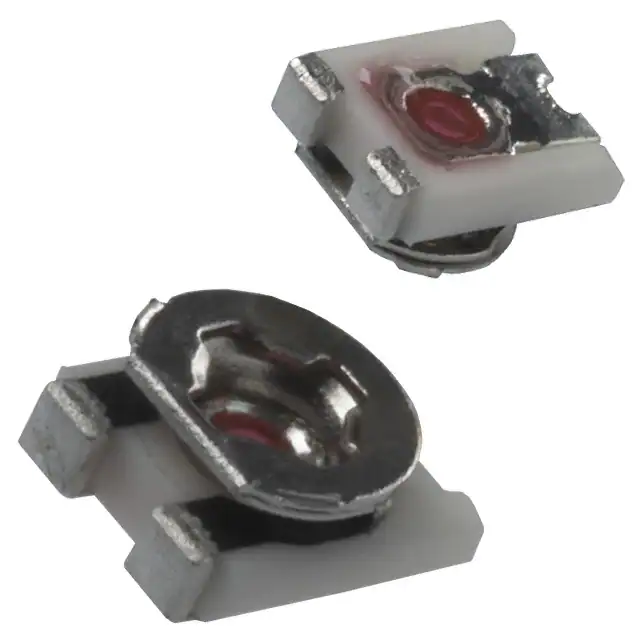

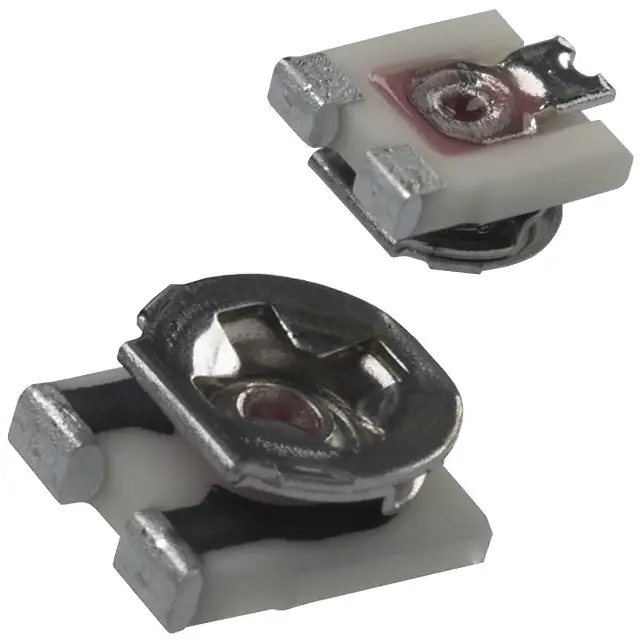

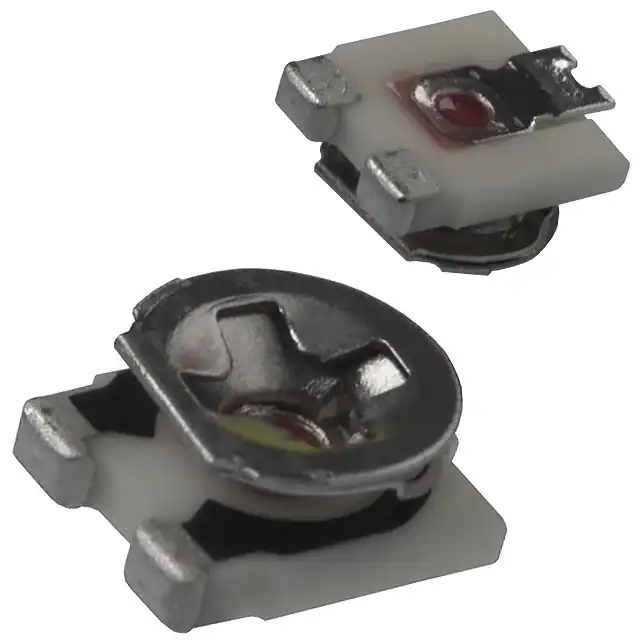

| Part Number | EVM-3YSX50B55 | EVM-3VSX50B16 | EVM-3WSX80B55 | EVM-2WSX80B55 | EVM-2XSX50B54 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | EVM | EVM | EVM | EVM | EVM |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 500 kOhms | 1 MOhms | 500 kOhms | 500 kOhms | 50 kOhms |
| Power (Watts) | 0.15W | 0.15W | 0.15W | 0.15W | 0.15W |
| Tolerance | ±25% | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | ±250ppm/°C | - |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Adjustment Type | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment | Top Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | J Lead | J Lead | J Lead | J Lead |
| Size / Dimension | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.136" x 0.122" Face (3.45mm x 3.10mm) | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) | Rectangular - 0.108" x 0.087" Face (2.75mm x 2.20mm) |
