Telit Cinterion ELS61-AUS
- Part No.:
- ELS61-AUS
- Manufacturer:
- Telit Cinterion
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Description:
- RF TXRX MODULE CELL SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ELS61-AUS Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Telit Cinterion
- Series:
- -
- Package/Case:
- Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- Cellular
- Protocol:
- GSM, HSPA+, LTE, UMTS
- Modulation:
- -
- Frequency:
- 700MHz, 850MHz, 1.7GHz, 1.9GHz, 2.1GHz
- Data Rate:
- 10.2Mbps
- Power - Output:
- -
- Sensitivity:
- -
- Serial Interfaces:
- ADC, GPIO, I2C, PWM, SPI, USB
- Antenna Type:
- Antenna Not Included
- Utilized IC / Part:
- -
- Memory Size:
- 31MB Flash, 18MB RAM
- Voltage - Supply:
- 3V ~ 4.5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
|
 |
|

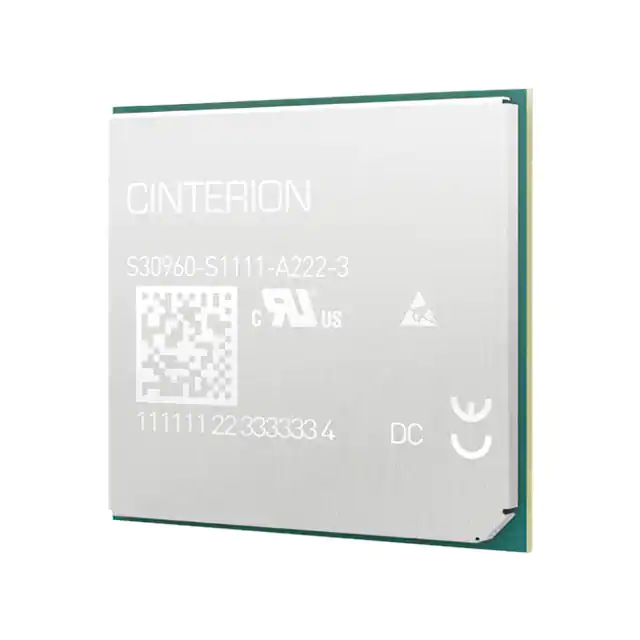

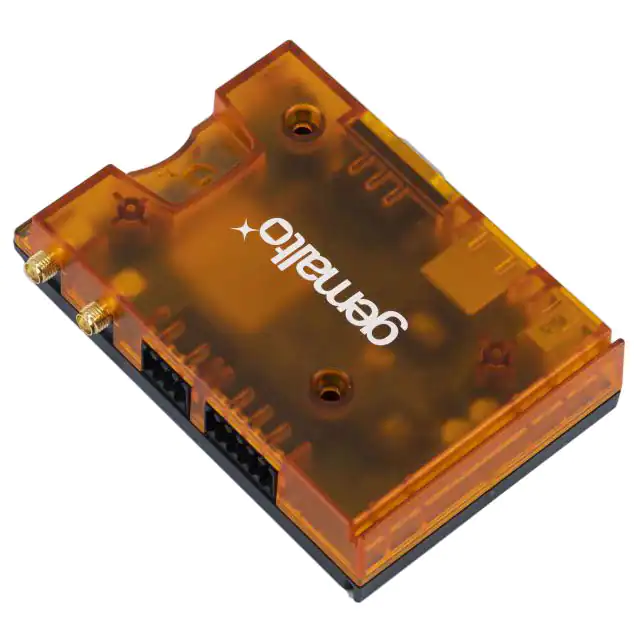

| Part Number | ELS61-USA REL.2 | ELS61T_US LAN REL.1 | ELS61-US REL.2 | ELS61T_US LAN REL.2 | ELS61T_E2 LAN REL.2 |
| Manufacturer | Telit Cinterion | Telit Cinterion | Telit Cinterion | Telit Cinterion | Telit Cinterion |
| Series | Cinterion ELS61 | Cinterion ELS61T | Cinterion ELS61 | - | Cinterion ELS61T |
| Package/Case | 122-LGA Module | Module | 122-LGA Module | Module | Module |
| Packaging | Tape & Reel (TR) | Box | Tape & Reel (TR) | Bulk | Box |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| RF Family/Standard | Cellular | Cellular | Cellular | Cellular | Cellular |
| Protocol | HSDPA, HSUPA, LTE, UMTS | HSDPA, HSUPA, LTE, UMTS | HSDPA, HSUPA, LTE, UMTS | GPRS, GSM, HSPA+, LTE, WCDMA | EDGE, GPRS, GSM, HSDPA, HSUPA, LTE, UMTS |
| Modulation | 64-QAM | 64-QAM | 64-QAM | - | 64-QAM |
| Frequency | 700MHz, 850MHz, AWS1, 1,9GHz | 700MHz, 850MHz, AWS1, 1,9GHz | 700MHz, 850MHz, AWS1, 1,9GHz | - | 800MHz, 900MHz, 1.8GHz, 2.1GHz |
| Data Rate | 10.2Mbps | 10.2Mbps | 10.2Mbps | 10.3Mbps | 10.2Mbps |
| Power - Output | 23dBm | 23dBm | 23dBm | - | 33dBm |
| Sensitivity | - | - | - | - | - |
| Serial Interfaces | ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB | ADC, GPIO, I2C, I2S, RS232, PCM, SPI | ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB | GPIO, I2C, SPI | ADC, GPIO, I2C, I2S, RS232, PCM, SPI |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included | Antenna Not Included |
| Utilized IC / Part | Intel XMM 7160 | Intel XMM 7160 | Intel XMM 7160 | - | Intel XMM 7160 |
| Memory Size | 30MB Flash, 18MB RAM | 30MB Flash, 18MB RAM | 30MB Flash, 18MB RAM | - | 30MB Flash, 18MB RAM |
| Voltage - Supply | 3V ~ 4.5V | 8V ~ 57V | 3V ~ 4.5V | 8V ~ 30V | 8V ~ 57V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | - | 60mA ~ 530mA | - | - | 60mA ~ 530mA |
| Mounting Type | Surface Mount | DIN Rail | Surface Mount | DIN Rail | DIN Rail |
| Operating Temperature | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 90°C | -30°C ~ 65°C | -40°C ~ 90°C |
