TE Connectivity Potter & Brumfield Relays DPC-3Q30BL1X
- Part No.:
- DPC-3Q30BL1X
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Contactors (Electromechanical)
- Package:
- Description:
- RELAY GEN PURP 3PST 30A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DPC-3Q30BL1X Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- DPC, Products Unlimited
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 24VAC
- Contact Form:
- 3PST-NO (DM) (3 Form X)
- Contact Rating (Current):
- 30 A
- Switching Voltage:
- 600VAC - Max
- Features:
- Insulation - Class B
- Termination Style:
- Screw Terminal, Quick Connect - 0.250" (6.3mm)
- Operating Temperature:
- -40°C ~ 65°C
- Must Operate Voltage:
- 18 VAC
- Must Release Voltage:
- 6 VAC
| Image |  |
 |
 |
 |
|

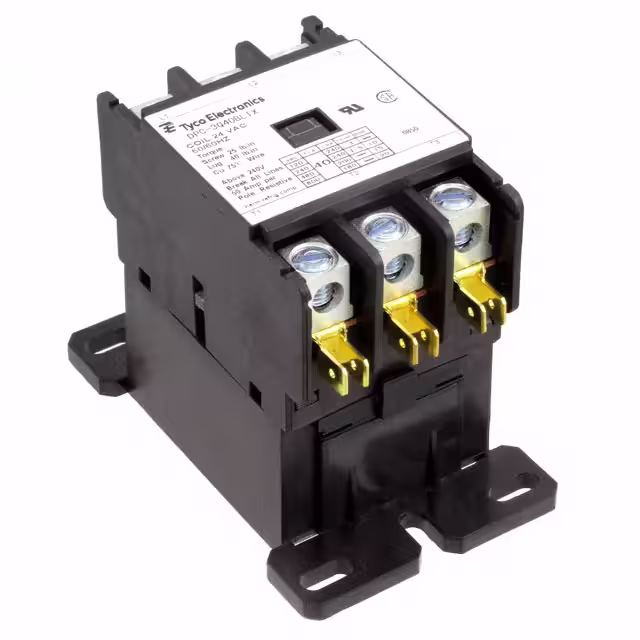

| Part Number | DPC-3Q40BL1X | DPC-3T30BL1X | DPC-3T20CS1X | DPC-3U30CS1X | DPC-3H40BL1X |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | DPC, Products Unlimited | - | DPC | DPC | DPC, Products Unlimited |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Active | Active | Obsolete | Active |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Coil Voltage | 24VAC | 120VAC | 120VAC | 240VAC | 480VAC |
| Contact Form | 3PST-NO (DM) (3 Form X) | 3PST-NO (DM) (3 Form X) | 3PST-NO (DM) (3 Form X) | 3PST-NO (DM) (3 Form X) | 3PST-NO (DM) (3 Form X) |
| Contact Rating (Current) | 40 A | 30 A | 20 A | 30 A | 40 A |
| Switching Voltage | 600VAC - Max | 600VAC - Max | 600VAC - Max | 600VAC - Max | 600VAC - Max |
| Features | Test Button | Insulation - Class B | Test Button | - | Insulation - Class B |
| Termination Style | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) | Screw Terminal, Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C | -40°C ~ 65°C |
| Must Operate Voltage | 18 VAC | 88 VAC | 88 VAC | 177 VAC | 384 VAC |
| Must Release Voltage | 6 VAC | 20 VAC | 20 VAC | 40 VAC | 150 VAC |
