Analog Devices Inc. DC1762A-C
- Part No.:
- DC1762A-C
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC1762A-C.pdf
- Description:
- BOARD DEMO 16BIT 80MSPS LTC2163
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1762A-C Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 16
- Sampling Rate (Per Second):
- 80M
- Data Interface:
- Parallel
- Input Range:
- 1 ~ 2Vpp
- Power (Typ) @ Conditions:
- 113mW @ 80MSPS
- Utilized IC / Part:
- LTC2163
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

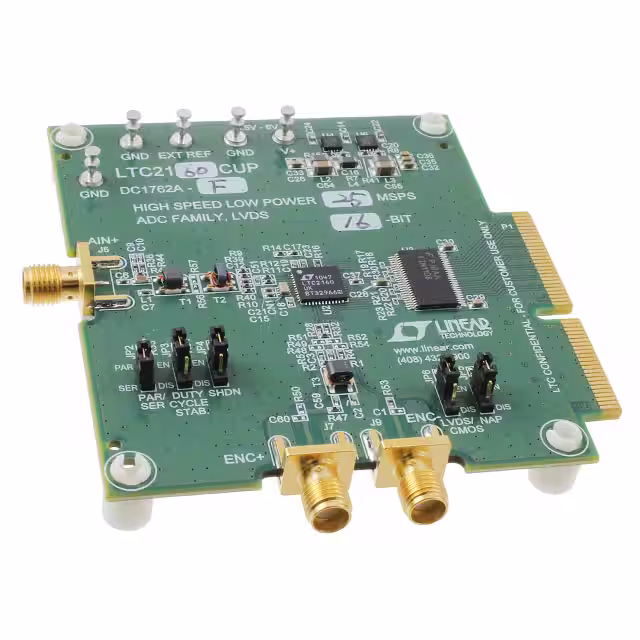

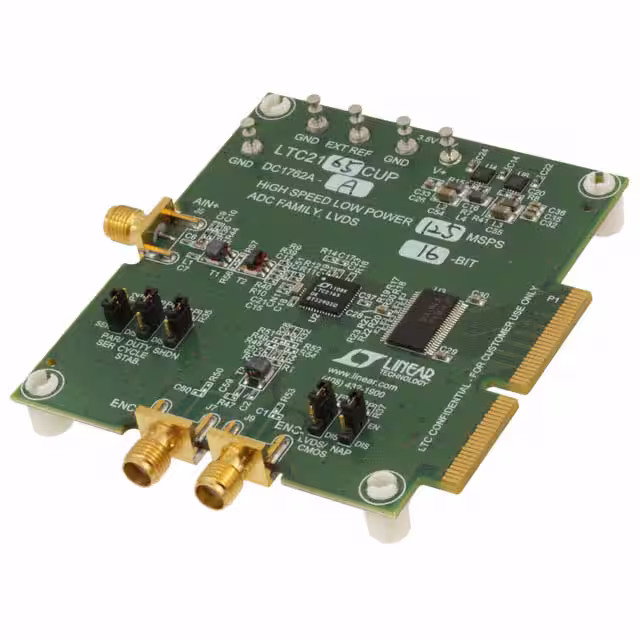

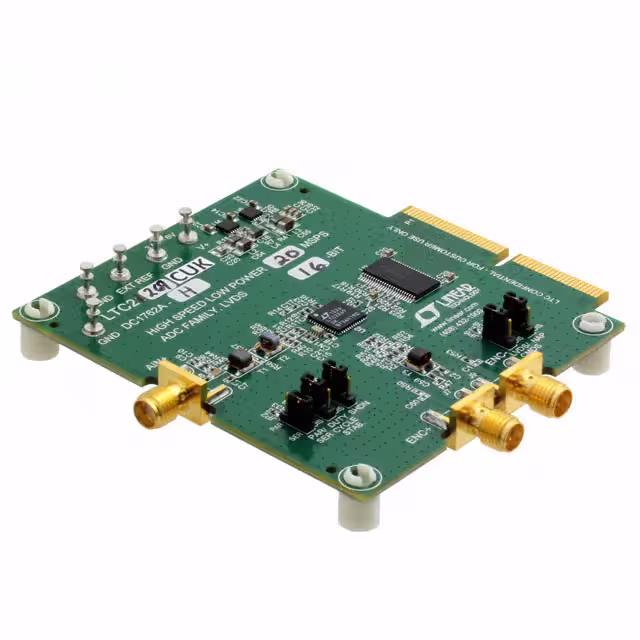

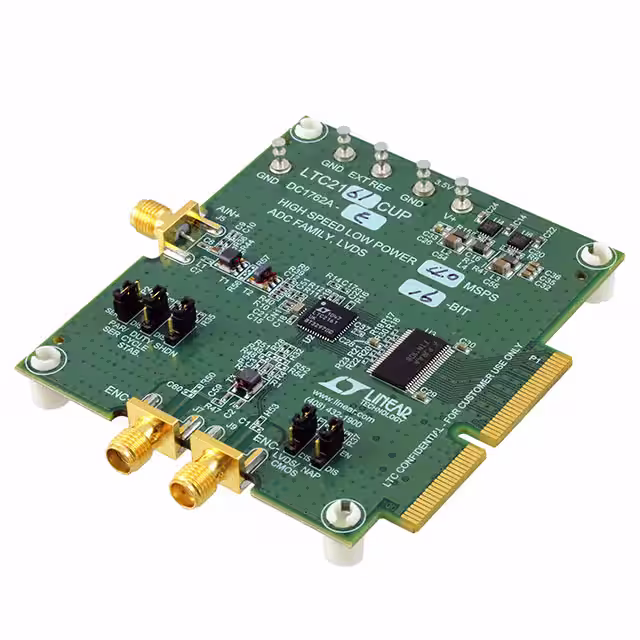

| Part Number | DC1762A-A | DC1762A-D | DC1762A-F | DC1762A-E | DC1762A-H |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 |
| Number of Bits | 16 | 16 | 16 | 16 | 16 |
| Sampling Rate (Per Second) | 125M | 65M | 25M | 40M | 20M |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Input Range | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp |
| Power (Typ) @ Conditions | 204mW @ 125MSPS | 92mW @ 65MSPS | 47mW @ 25MSPS | 66mW @ 40MSPS | 161mW @ 20MSPS |
| Utilized IC / Part | LTC2165 | LTC2162 | LTC2160 | LTC2161 | LTC2269 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
