Silicon Labs CPT007B-A01-GMR
- Part No.:
- CPT007B-A01-GMR
- Manufacturer:
- Silicon Labs
- Category:
- Sensor, Capacitive Touch
- Package:
- 20-VFQFN
- Datasheet:
-
CPT007B-A01-GMR.pdf
- Description:
- IC CTLR CAP TOUCH 7CH GPIO 20QFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CPT007B-A01-GMR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Silicon Labs
- Package/Case:
- 20-VFQFN
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Discontinued at Digi-Key
- Programmable:
- Not Verified
- Type:
- Buttons
- Proximity Detection:
- Yes
- Number of Inputs:
- Up to 7
- LED Driver Channels:
- Up to 7
- Interface:
- Open Drain, Push-Pull
- Resolution:
- -
- Voltage - Supply:
- 1.8V ~ 3.6V
- Current - Supply:
- 180µA
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 20-QFN (3x3)
| Image |  |
 |
 |
|
|

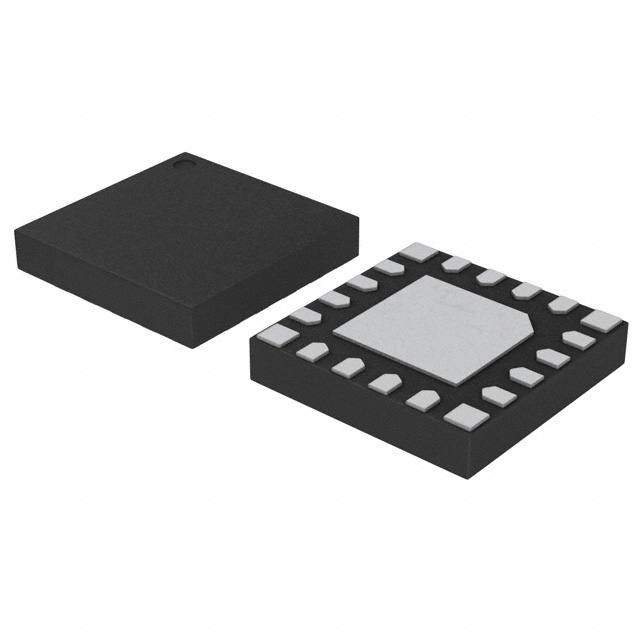

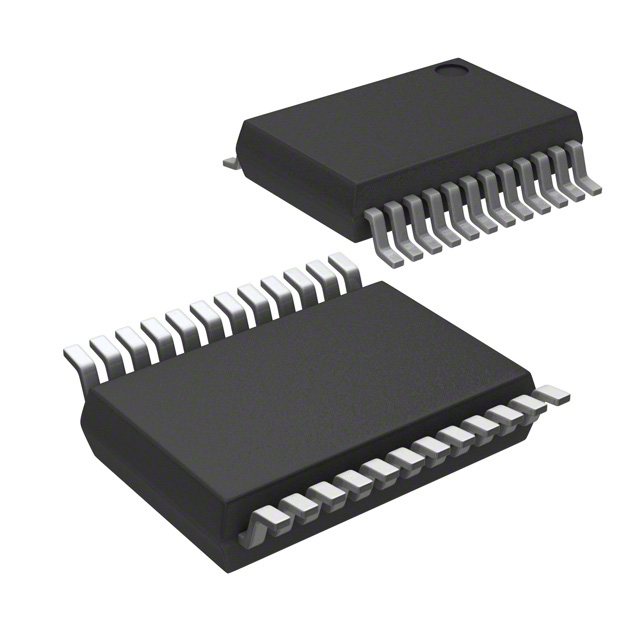

| Part Number | CPT007B-A02-GM | CPT007B-A01-GM | CPT007B-A02-GUR | CPT007B-A02-GMR | CPT007B-A02-GU |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Package/Case | 20-UFQFN Exposed Pad | 20-VFQFN | 24-SSOP (0.154", 3.90mm Width) | 20-UFQFN Exposed Pad | 24-SSOP (0.154", 3.90mm Width) |
| Series | - | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Type | Buttons | Buttons | Buttons | Buttons | Buttons |
| Proximity Detection | Yes | Yes | Yes | Yes | Yes |
| Number of Inputs | Up to 7 | Up to 7 | Up to 7 | Up to 7 | Up to 7 |
| LED Driver Channels | Up to 7 | Up to 7 | Up to 7 | Up to 7 | Up to 7 |
| Interface | Open Drain, Push-Pull | Open Drain, Push-Pull | Open Drain, Push-Pull | Open Drain, Push-Pull | Open Drain, Push-Pull |
| Resolution | - | - | - | - | - |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Current - Supply | 3.1mA | 180µA | 3.1mA | 3.1mA | 3.1mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-QFN (3x3) | 20-QFN (3x3) | 24-QSOP | 20-QFN (3x3) | 24-QSOP |
