TE Connectivity Potter & Brumfield Relays CHB-38-70013
- Part No.:
- CHB-38-70013
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Category:
- Time Delay Relays
- Package:
- Datasheet:
-
CHB-38-70013.pdf
- Description:
- RELAY TIME DELAY
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CHB-38-70013 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Potter & Brumfield Relays
- Series:
- CH
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Mounting Type:
- Socketable
- Relay Type:
- Mechanical Relay
- Function:
- On-Delay
- Circuit:
- DPDT (2 Form C)
- Delay Time:
- 1 Sec ~ 180 Sec
- Contact Rating @ Voltage:
- 10A @ 277VAC
- Voltage - Supply:
- 120VAC
- Termination Style:
- Plug In, 11 Pin (Octal)
- Timing Adjustment Method:
- Hand Dial
- Timing Initiate Method:
- Input Voltage, Trigger Signal
- Grade:
- -
- Qualification:
- -
| Image |  |
|
|
|
|

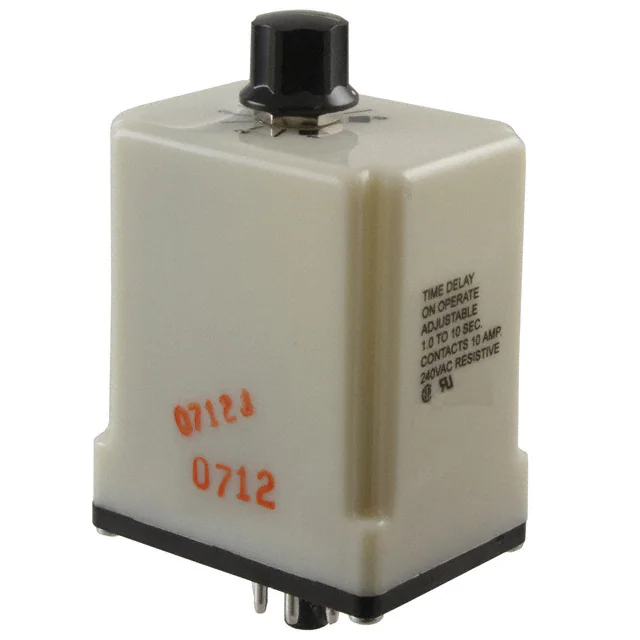

| Part Number | CHB-38-70021 | CHB-38-30003 | CHB-38-30001 | CHB-38-70001 | CHB-38-70002 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Series | CH | CH | CH | CH | CH |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Mounting Type | Socketable | Socketable | Socketable | Socketable | Socketable |
| Relay Type | Mechanical Relay | Mechanical Relay | Mechanical Relay | Mechanical Relay | Mechanical Relay |
| Function | Interval | On-Delay | On-Delay | On-Delay | On-Delay |
| Circuit | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) |
| Delay Time | 1 Sec ~ 10 Sec | 1 Sec ~ 180 Sec | 1 Sec ~ 10 Sec | 1 Sec ~ 10 Sec | 1 Sec ~ 60 Sec |
| Contact Rating @ Voltage | 10A @ 277VAC | 10A @ 277VAC | 10A @ 277VAC | 10A @ 277VAC | 10A @ 277VAC |
| Voltage - Supply | 120VAC | 24VAC | 24VAC | 120VAC | 120VAC |
| Termination Style | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial | Hand Dial | Hand Dial | Hand Dial | Hand Dial |
| Timing Initiate Method | Input Voltage | Input Voltage | Input Voltage | Input Voltage | Input Voltage |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
