TDK Corporation CCT323047-100-16-00
- Part No.:
- CCT323047-100-16-00
- Manufacturer:
- TDK Corporation
- Category:
- Current Sense Transformers
- Package:
- Datasheet:
-
CCT323047-100-16-00.pdf
- Description:
- CURR SENSE XFMR 100A CHAS MNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CCT323047-100-16-00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- CCT
- Packaging:
- Bulk
- Product Status:
- Active
- Frequency Range:
- 50/60Hz
- Type:
- Non-Invasive (Split Core)
- Current Rating (Amps):
- 100 A
- Inductance:
- -
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- -
- Current Ratio:
- 3000:1
- DC Resistance (DCR):
- 285Ohm
- Ratings:
- -
- Mounting Type:
- Chassis Mount
- Size / Dimension:
- 1.378" L x 1.280" W (35.00mm x 32.50mm)
- Height - Seated (Max):
- 1.870" (47.50mm)
- Termination Style:
- Wire Leads with Connector

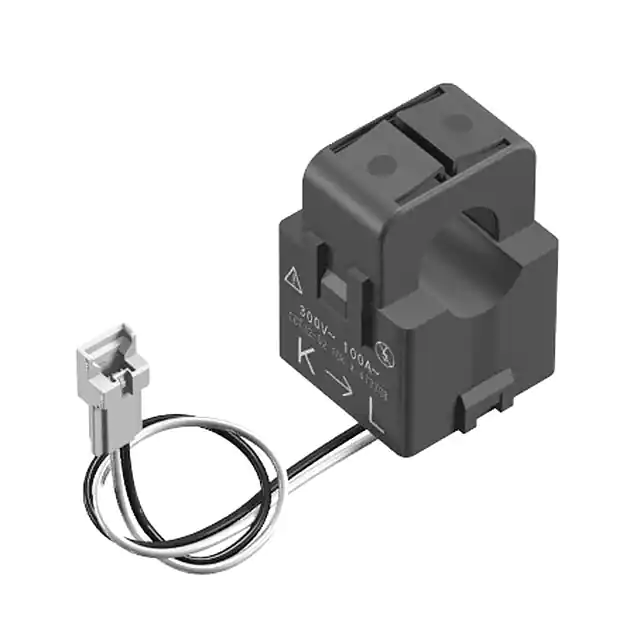

| Image |  |
 |
| Part Number | CCT323047-100-16-00 | CCT323047-100-16-02 |
| Manufacturer | TDK Corporation | TDK Corporation |
| Series | CCT | CCT |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| Frequency Range | 50/60Hz | 50/60Hz |
| Type | Non-Invasive (Split Core) | Non-Invasive (Split Core) |
| Current Rating (Amps) | 100 A | 100 A |
| Inductance | - | - |
| ET (Volt-Time) | - | - |
| Turns Ratio - Primary:Secondary | - | - |
| Current Ratio | 3000:1 | 3000:1 |
| DC Resistance (DCR) | 285Ohm | 285Ohm |
| Ratings | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Size / Dimension | 1.378" L x 1.280" W (35.00mm x 32.50mm) | 1.378" L x 1.280" W (35.00mm x 32.50mm) |
| Height - Seated (Max) | 1.870" (47.50mm) | 1.870" (47.50mm) |
| Termination Style | Wire Leads with Connector | Wire Leads with Connector |
