Advantech Corporation BB-ABDN-SE-DP553
- Part No.:
- BB-ABDN-SE-DP553
- Manufacturer:
- Advantech Corporation
- Category:
- RF Transceiver Modules and Modems
- Package:
- Module
- Description:
- RF TXRX MOD I CHIP + U.FL CHAS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BB-ABDN-SE-DP553 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Advantech Corporation
- Series:
- AirborneM2M™
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- RF Family/Standard:
- WiFi
- Protocol:
- 802.11a/b/g/n
- Modulation:
- 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
- Frequency:
- 2.4GHz, 5GHz
- Data Rate:
- 65Mbps
- Power - Output:
- 17dBm
- Sensitivity:
- -92dBm
- Serial Interfaces:
- Serial
- Antenna Type:
- Integrated, Chip + U.FL
- Utilized IC / Part:
- -
- Memory Size:
- -
- Voltage - Supply:
- 5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Chassis Mount
- Operating Temperature:
- -20°C ~ 85°C
| Image |  |
|
|
 |
 |

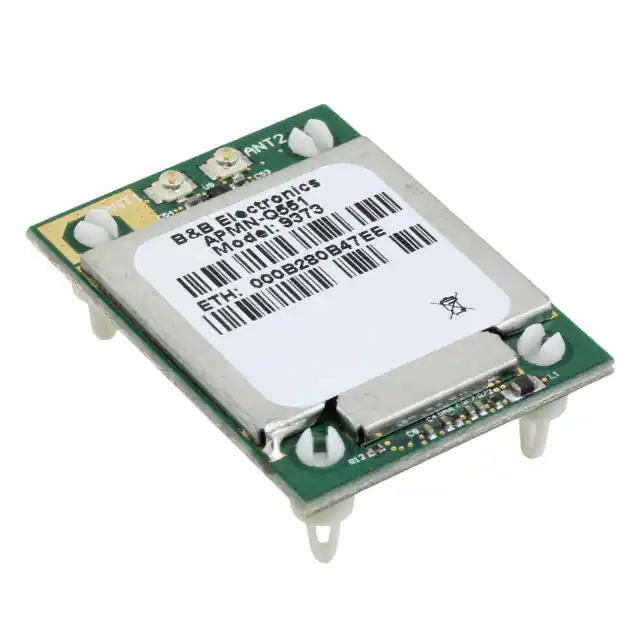

| Part Number | BB-WLNNA-SE-DP551 | BB-WLNNA-AN-DP551 | BB-WLNNA-Q551 | BB-APMN-Q551 | BB-WLNN-ER-DP551 |
| Manufacturer | Advantech Corp | Advantech Corporation | Advantech Corp | Advantech Corporation | Advantech Corporation |
| Series | BB-WLNNA | BB-WLNNA | BB-WLNNA | AirborneM2M™ | AirborneM2M™ |
| Package/Case | Module | Module | Module | Module | Module |
| Packaging | Tray | Tray | Box | Tray | Tray |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | - | Not Verified | Not Verified |
| RF Family/Standard | WiFi | WiFi | WiFi | WiFi | WiFi |
| Protocol | 802.11a/b/g/n | 802.11a/b/g/n | 802.11a/b/g/n | 802.11a/b/g/n | 802.11a/b/g/n |
| Modulation | - | - | - | - | 16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Frequency | 2.412GHz ~ 2.483GHz, 5.15GHz ~ 5.725GHz, 5.745GHz ~ 5.825GHz | 2.412GHz ~ 2.483GHz, 5.15GHz ~ 5.725GHz, 5.745GHz ~ 5.825GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
| Data Rate | 300Mbps | 300Mbps | 300Mbps | 65Mbps | 65Mbps |
| Power - Output | 17dBm | 17dBm | 17dBm | 17dBm | 17dBm |
| Sensitivity | -88dBm | -88dBm | -88dBm | -92dBm | -92dBm |
| Serial Interfaces | Ethernet, GPIO, UART | Ethernet, GPIO, UART | Ethernet, GPIO, UART | SPI, UART | Ethernet |
| Antenna Type | Antenna Not Included, I-PEX MHF4 | Antenna Not Included, I-PEX MHF4 | Antenna Not Included, I-PEX MHF4 | Antenna Not Included, U.FL | Antenna Not Included, U.FL |
| Utilized IC / Part | - | - | - | CC2530 | CC2530 |
| Memory Size | 32MB Flash | 32MB Flash | 32MB Flash, 128MB RAM | - | - |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Current - Receiving | - | - | - | 200mA | 200mA |
| Current - Transmitting | - | - | - | 370mA | 370mA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Chassis Mount | Surface Mount |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
