Broadcom Limited ASMF-PWG8-NPRDM

Name: ASMF-PWG8-NPRDM
Brand: Broadcom Limited
SKU: ASMF-PWG8-NPRDM
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: ASMF-PWG8-NPRDM

Manufacturer:: Broadcom Limited

Category:: LED White Lighting

Package:: 1212 (3030 Metric)

Description:: LED ASMF-PWG8 WHT 4000K 1212

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

ASMF-PWG8-NPRDM Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Broadcom Limited

Series:: ASMF-PWG8-NxxxM

Package/Case:: 1212 (3030 Metric)

Packaging:: Tape & Reel (TR)

Product Status:: Active

Color:: White, Neutral

CCT (K):: 4000K

Flux @ 85°C, Current - Test:: -

Flux @ 25°C, Current - Test:: 128lm (115lm ~ 154lm)

Current - Test:: 300mA

Voltage - Forward (Vf) (Typ):: 3.2V

Lumens/Watt @ Current - Test:: 133 lm/W

CRI (Color Rendering Index):: 80

Current - Max:: 350mA

Viewing Angle:: 120°

Grade:: -

Qualification:: -

Mounting Type:: Surface Mount

Supplier Device Package:: 1212

Size / Dimension:: 0.118" L x 0.118" W (3.00mm x 3.00mm)

Height - Seated (Max):: 0.031" (0.80mm)

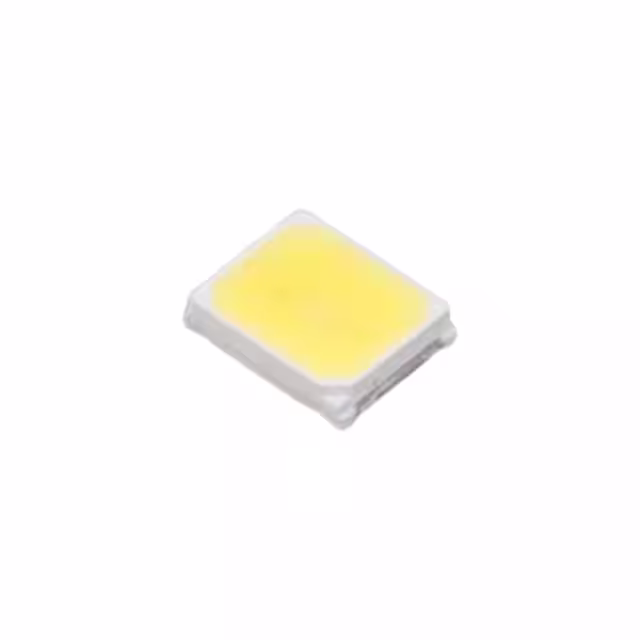

Part Number	ASMF-LWG8-NTWHD	ASMF-LWG8-NSVJD	ASMF-LWG8-NTWDD	ASMF-LWG8-NRUAD	ASMF-LWG8-NTWED
Manufacturer	Broadcom Limited	Broadcom Limited	Broadcom Limited	Broadcom Limited	Broadcom Limited
Series	-	-	-	-	-
Package/Case	1212 (3030 Metric)	1212 (3030 Metric)	1212 (3030 Metric)	1212 (3030 Metric)	1212 (3030 Metric)
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Color	White, Cool	White, Cool	White, Neutral	White, Warm	White, Cool
CCT (K)	6500K	6800K	4000K	2700K	5000K
Flux @ 85°C, Current - Test	-	-	-	-	-
Flux @ 25°C, Current - Test	32lm (Typ)	30lm (Typ)	31lm (Typ)	28lm (Typ)	32lm (Typ)
Current - Test	65mA	65mA	65mA	65mA	65mA
Voltage - Forward (Vf) (Typ)	2.8V	2.8V	2.8V	2.8V	2.8V
Lumens/Watt @ Current - Test	176 lm/W	165 lm/W	170 lm/W	154 lm/W	176 lm/W
CRI (Color Rendering Index)	80	80	80	80	80
Current - Max	240mA	240mA	240mA	240mA	240mA
Viewing Angle	120°	120°	120°	120°	120°
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Supplier Device Package	1212	1212	1212	1212	1212
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)	0.031" (0.80mm)
