Broadcom Limited ACFL-6212T-000E
- Part No.:
- ACFL-6212T-000E
- Manufacturer:
- Broadcom Limited
- Category:
- Logic Output Optoisolators
- Package:
- 12-BSOP (0.295", 7.50mm Width)
- Description:
- OPTOISO 5KV 2CH PSH PULL SO12
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ACFL-6212T-000E Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- R²Coupler™
- Package/Case:
- 12-BSOP (0.295", 7.50mm Width)
- Packaging:
- Tube
- Product Status:
- Obsolete
- Number of Channels:
- 2
- Inputs - Side 1/Side 2:
- 1/1
- Voltage - Isolation:
- 5000Vrms
- Common Mode Transient Immunity (Min):
- 15kV/µs
- Input Type:
- DC
- Output Type:
- Push-Pull, Totem Pole
- Current - Output / Channel:
- 10 mA
- Data Rate:
- 15MBd
- Propagation Delay tpLH / tpHL (Max):
- 100ns, 100ns
- Rise / Fall Time (Typ):
- 10ns, 10ns
- Voltage - Forward (Vf) (Typ):
- 1.5V
- Current - DC Forward (If) (Max):
- 20mA
- Voltage - Supply:
- 3V ~ 5.5V
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Operating Temperature:
- -40°C ~ 125°C
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 12-SO

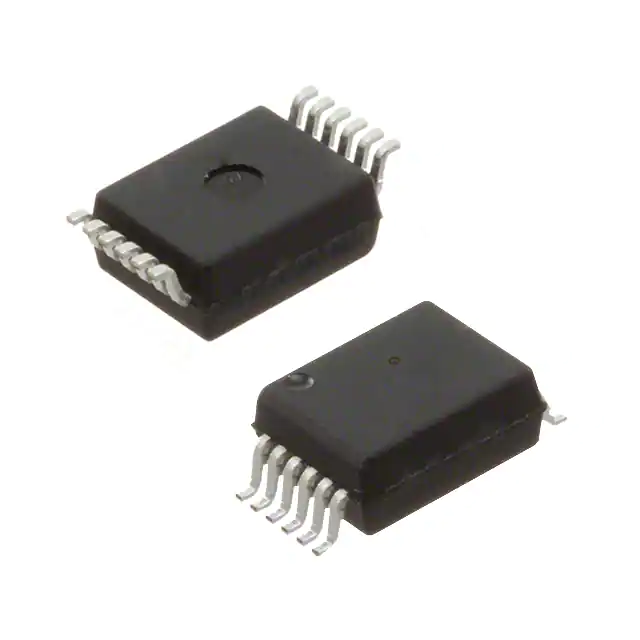

| Image |  |
|
|
 |
|
| Part Number | ACFL-6211T-000E | ACFL-6212T-560E | ACFL-6211T-060E | ACFL-6211U-500E | ACFL-6212U-500E |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | R²Coupler™ | R²Coupler™ | R²Coupler™ | R²Coupler™ | R²Coupler™ |
| Package/Case | 12-BSOP (0.295", 7.50mm Width) | 12-BSOP (0.295", 7.50mm Width) | 12-BSOP (0.295", 7.50mm Width) | 12-BSOP (0.295", 7.50mm Width) | 12-BSOP (0.295", 7.50mm Width) |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Number of Channels | 2 | 2 | 2 | 2 | 2 |
| Inputs - Side 1/Side 2 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
| Voltage - Isolation | 5000Vrms | 5000Vrms | 5000Vrms | 5000Vrms | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs | 25kV/µs | 15kV/µs | 15kV/µs | 25kV/µs |
| Input Type | DC | DC | DC | DC | DC |
| Output Type | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole |
| Current - Output / Channel | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA |
| Data Rate | 15MBd | 15MBd | 15MBd | - | - |
| Propagation Delay tpLH / tpHL (Max) | 35ns, 35ns | 100ns, 100ns | 35ns, 35ns | 35ns, 35ns | 100ns, 100ns |
| Rise / Fall Time (Typ) | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns | 10ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.5V | 1.5V | 1.5V | 1.5V | 1.5V |
| Current - DC Forward (If) (Max) | 20mA | 20mA | 20mA | 20mA | 20mA |
| Voltage - Supply | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Grade | Automotive | Automotive | Automotive | - | - |
| Qualification | AEC-Q100 | AEC-Q100 | AEC-Q100 | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 12-SO | 12-SO | 12-SO | 12-SO | 12-SO |
