Tusonix a Subsidiary of CTS Electronic Components 4306-018LF
- Part No.:
- 4306-018LF
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Category:
- Feed Through Capacitors
- Package:
- Axial, Press Fit
- Datasheet:
-
4306-018LF.pdf
- Description:
- CAP FEEDTHRU 50PF 200V AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
4306-018LF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Series:
- 4306
- Package/Case:
- Axial, Press Fit
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 50 pF
- Tolerance:
- 0%, +100%
- Voltage - Rated:
- 200V
- Current:
- 5 A
- DC Resistance (DCR) (Max):
- -
- Operating Temperature:
- -55°C ~ 125°C
- Insertion Loss:
- 10dB @ 1GHz
- Temperature Coefficient:
- -
- Ratings:
- -
- Mounting Type:
- -
- Size / Dimension:
- 0.146" Dia x 0.110" L (3.71mm x 2.79mm)
- Height (Max):
- -
- Thread Size:
- -
| Image |  |
 |
 |
 |
 |

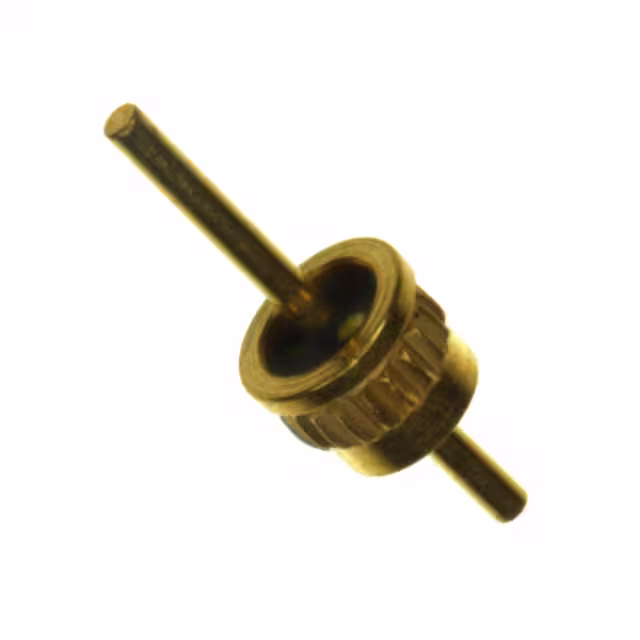

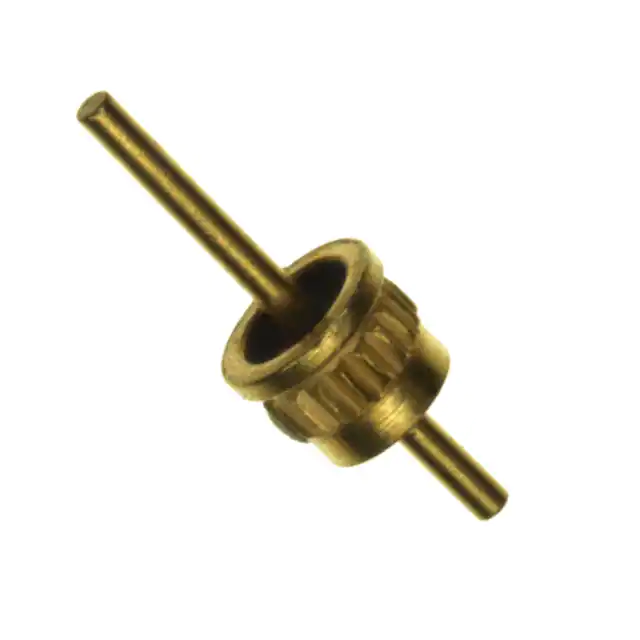

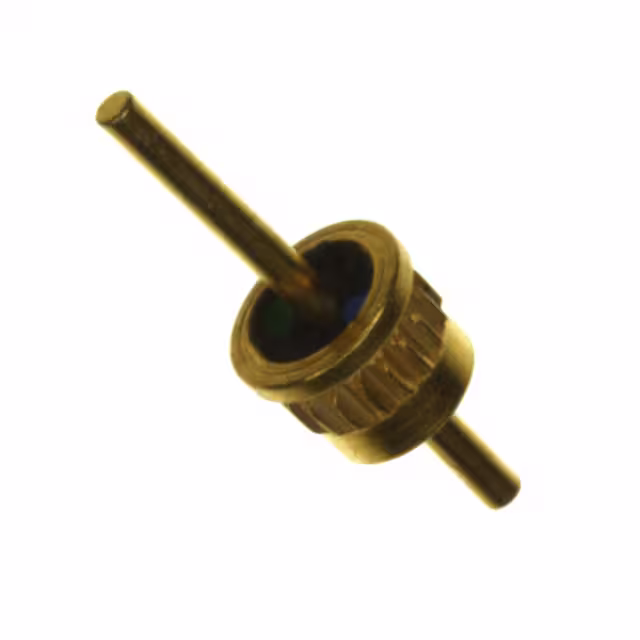

| Part Number | 4306-030LF | 4306-011LF | 4306-003LF | 4306-004LF | 4306-006LF |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 4306 | 4306 | 4306 | 4306 | 4306 |
| Package/Case | Axial, Press Fit | Axial, Press Fit | Axial, Press Fit | Axial, Press Fit | Axial, Press Fit |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 2700 pF | 0.027 µF | 500 pF | 5000 pF | 25 pF |
| Tolerance | 0%, +100% | 0%, +100% | 0%, +100% | 0%, +100% | 0%, +100% |
| Voltage - Rated | 100V | 50V | 200V | 100V | 200V |
| Current | 5 A | 5 A | 5 A | 5 A | 5 A |
| DC Resistance (DCR) (Max) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Insertion Loss | 25dB @ 100MHz | 45dB @ 100MHz | 35dB @ 1GHz | 25dB @ 100MHz | 10dB @ 1GHz |
| Temperature Coefficient | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) | 0.146" Dia x 0.110" L (3.71mm x 2.79mm) |
| Height (Max) | - | - | - | - | - |
| Thread Size | - | - | - | - | - |
