Tusonix a Subsidiary of CTS Electronic Components 2463-002-X5U0-101P
- Part No.:
- 2463-002-X5U0-101P
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Category:
- Feed Through Capacitors
- Package:
- Axial, Shoulder
- Datasheet:
-
2463-002-X5U0-101P.pdf
- Description:
- CAP FEEDTHRU 100PF 200V AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2463-002-X5U0-101P Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Series:
- 2463
- Package/Case:
- Axial, Shoulder
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 100 pF
- Tolerance:
- 0%, +100%
- Voltage - Rated:
- 200V
- Current:
- 10 A
- DC Resistance (DCR) (Max):
- -
- Operating Temperature:
- -55°C ~ 85°C
- Insertion Loss:
- -
- Temperature Coefficient:
- -
- Ratings:
- -
- Mounting Type:
- Chassis Mount
- Size / Dimension:
- 0.075" Dia x 0.155" L (1.90mm x 3.93mm)
- Height (Max):
- -
- Thread Size:
- -
| Image |  |
 |
 |
|
|

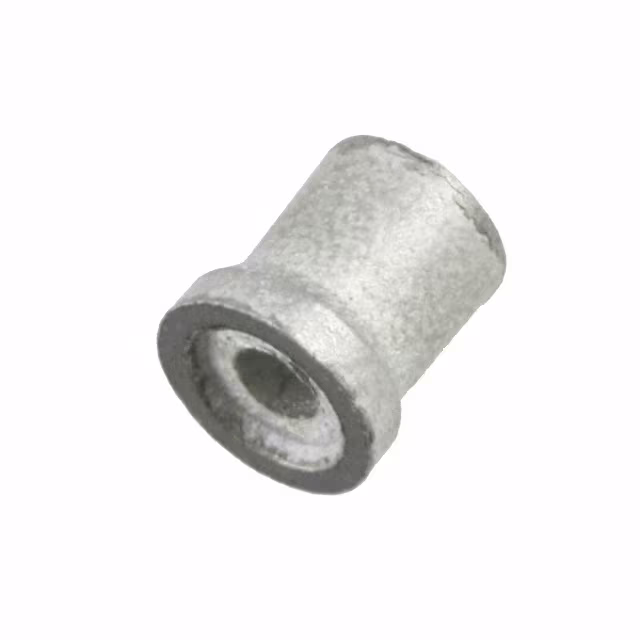

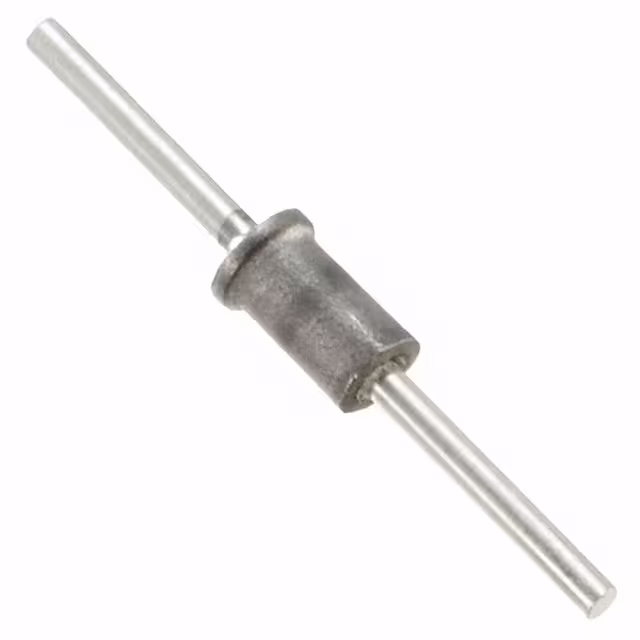

| Part Number | 2463-000-X7U0-152P | 2463-001-X5S0-471MLF | 2463-002-X5U0-152P | 2463-002-X5U0-152PLF | 2463-002-X5U0-471P |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 2463 | 2463 | 2463 | 2463 | 2463 |
| Package/Case | Axial, Shoulder - No Leads | Axial, Shoulder - No Leads | Axial, Shoulder | Axial, Shoulder | Axial, Shoulder |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1500 pF | 470 pF | 1500 pF | 1500 pF | 470 pF |
| Tolerance | 0%, +100% | ±20% | 0%, +100% | 0%, +100% | 0%, +100% |
| Voltage - Rated | 100V | 200V | 200V | 200V | 200V |
| Current | - | - | 10 A | 10 A | 10 A |
| DC Resistance (DCR) (Max) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Insertion Loss | 22dB @ 100MHz | 12dB @ 100MHz | 22dB @ 100MHz | 22dB @ 100MHz | 12dB @ 100MHz |
| Temperature Coefficient | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Mounting Type | Chassis Mount | - | Chassis Mount | Chassis Mount | Chassis Mount |
| Size / Dimension | 0.094" Dia x 0.155" L (2.39mm x 3.94mm) | 0.099" Dia x 0.125" L (2.51mm x 3.18mm) | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) | 0.075" Dia x 0.155" L (1.90mm x 3.93mm) |
| Height (Max) | - | - | - | - | - |
| Thread Size | - | - | - | - | - |
