Tusonix a Subsidiary of CTS Electronic Components 2461-002-X7V0-801AA
- Part No.:
- 2461-002-X7V0-801AA
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Category:
- Feed Through Capacitors
- Package:
- Axial, Bushing
- Datasheet:
-
2461-002-X7V0-801AA.pdf
- Description:
- CAP FEEDTHRU 800PF 100V AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2461-002-X7V0-801AA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Series:
- 2461
- Package/Case:
- Axial, Bushing
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 800 pF
- Tolerance:
- -
- Voltage - Rated:
- 100V
- Current:
- 20 A
- DC Resistance (DCR) (Max):
- -
- Operating Temperature:
- -55°C ~ 125°C
- Insertion Loss:
- -
- Temperature Coefficient:
- X7V
- Ratings:
- -
- Mounting Type:
- Chassis Mount
- Size / Dimension:
- 0.124" Dia x 0.165" L (3.15mm x 4.19mm)
- Height (Max):
- -
- Thread Size:
- -
| Image |  |
 |
 |
|
|

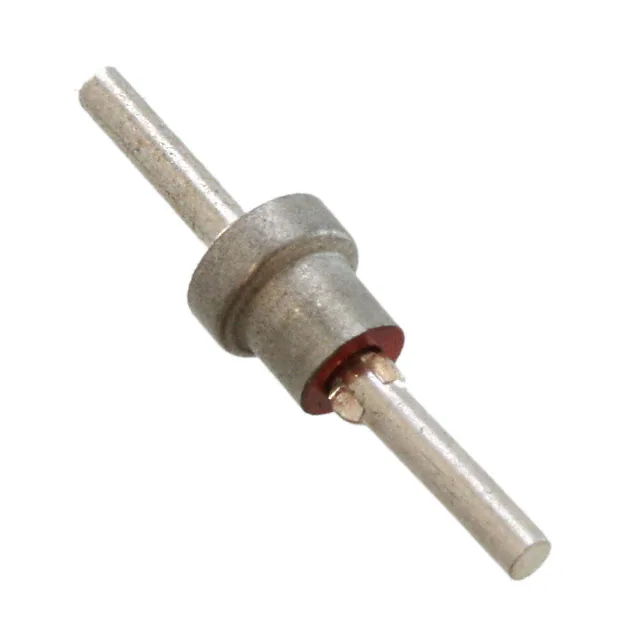

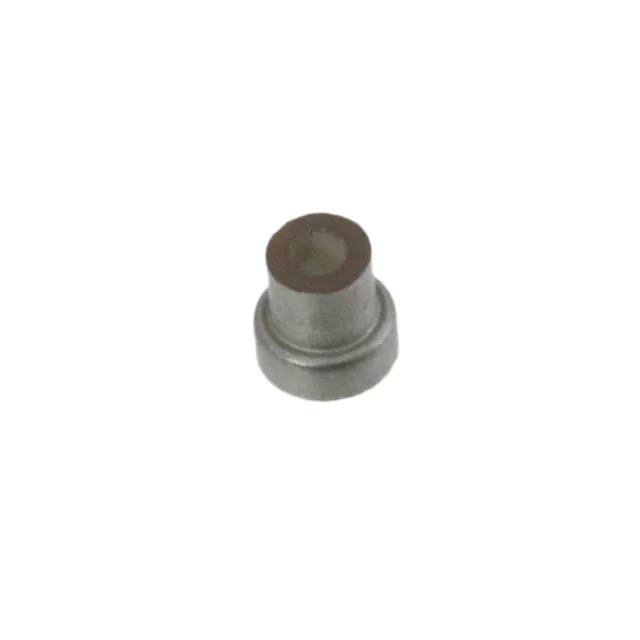

| Part Number | 2461-001-X7V0-102PLF | 2461-000-X7V0-102PLF | 2461-001-Y5U0-102AA | 2461-001-X7V0-102AA | 2461-000-X7V0-102P |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 2461 | 2461 | - | 2461 | 2461 |
| Package/Case | Axial, Shoulder | Axial, Shoulder - No Leads | - | Axial | Axial, Shoulder - No Leads |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 1000 pF | - | 1000 pF | 1000 pF |
| Tolerance | 0%, +100% | 0%, +100% | - | - | 0%, +100% |
| Voltage - Rated | 100V | 100V | - | 100V | 100V |
| Current | 20 A | - | - | 20 A | - |
| DC Resistance (DCR) (Max) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 125°C | -55°C ~ 125°C |
| Insertion Loss | - | 20dB @ 100MHz | - | 20dB @ 100MHz | 20dB @ 100MHz |
| Temperature Coefficient | X7V | X7V | - | X7V | X7V |
| Ratings | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | - | Through Hole | Chassis Mount |
| Size / Dimension | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | - | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) | 0.165" Dia x 0.165" L (4.19mm x 4.19mm) |
| Height (Max) | - | - | - | - | - |
| Thread Size | - | - | - | - | - |
