Tusonix a Subsidiary of CTS Electronic Components 2425-000-X5U0-102ZLF
- Part No.:
- 2425-000-X5U0-102ZLF
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Category:
- Feed Through Capacitors
- Package:
- Axial, Bushing - 2 Notched Leads
- Datasheet:
-
2425-000-X5U0-102ZLF.pdf
- Description:
- CAP FEEDTHRU 1000PF 200V AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2425-000-X5U0-102ZLF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Series:
- 2425
- Package/Case:
- Axial, Bushing - 2 Notched Leads
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 1000 pF
- Tolerance:
- -20%, +80%
- Voltage - Rated:
- 200V
- Current:
- 20 A
- DC Resistance (DCR) (Max):
- -
- Operating Temperature:
- -55°C ~ 85°C
- Insertion Loss:
- -
- Temperature Coefficient:
- X5U
- Ratings:
- -
- Mounting Type:
- Chassis Mount
- Size / Dimension:
- 0.312" Dia x 0.348" L (7.92mm x 8.84mm)
- Height (Max):
- -
- Thread Size:
- 12-32
| Image |  |
 |
 |
|
 |

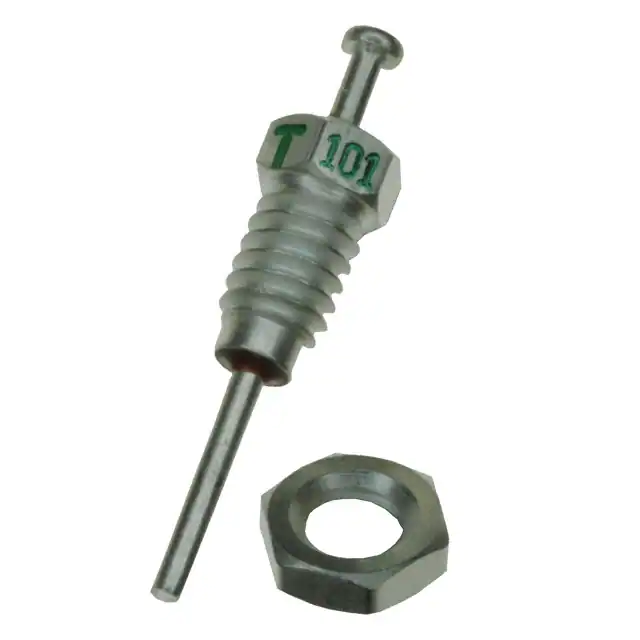

| Part Number | 2425-601-X5W0-103ZLF | 2425-001-X5U0-101AALF | 2425-018-X7W0-502PLF | 2425-018-X7R0-101MLF | 2425-001-X5W0-502AALF |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 2425 | 2425 | 2425 | 2425 | 2425 |
| Package/Case | Axial, Bushing | Axial, Bushing, 1 Turret Lead | Axial, Bushing, 1 Turret Lead | Axial, Bushing, 1 Turret Lead | Axial, Bushing, 1 Turret Lead |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 10000 pF | - | 5000 pF | 100 pF | - |
| Tolerance | -20%, +80% | - | 0%, +100% | ±20% | - |
| Voltage - Rated | 100V | 200V | 100V | 100V | 200V |
| Current | 20 A | 20 A | 20 A | 20 A | 20 A |
| DC Resistance (DCR) (Max) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 85°C |
| Insertion Loss | 35dB @ 100MHz | - | - | - | - |
| Temperature Coefficient | X5W | X5U | X7W | X7R | X5W |
| Ratings | - | - | - | - | - |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | 0.187" Dia x 0.470" L (4.75mm x 11.94mm) | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) |
| Height (Max) | - | - | - | - | - |
| Thread Size | 8-32 | 8-32 | 8-32 | 8-32 | 8-32 |
