TE Connectivity AMP Connectors 2344721-3
- Part No.:
- 2344721-3
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- RF Antennas
- Package:
- Description:
- CEILING MOUNT ANTENNA MIMO 4X4 S
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2344721-3 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- RF Family/Standard:
- Cellular, WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band):
- 2.44GHz, 5.45GHz
- Frequency Range:
- 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz
- Antenna Type:
- Dome
- Number of Bands:
- 2
- VSWR:
- -
- Return Loss:
- -
- Gain:
- 4dBi, 6dBi
- Power - Max:
- 10 W
- Features:
- Cable - 2m
- Termination:
- RP-SMA
- Ingress Protection:
- IP66
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Ceiling Mount
- Height (Max):
- 1.181" (30.00mm)
- Applications:
- LTE, UMTS, WCDMA, Wi-Fi

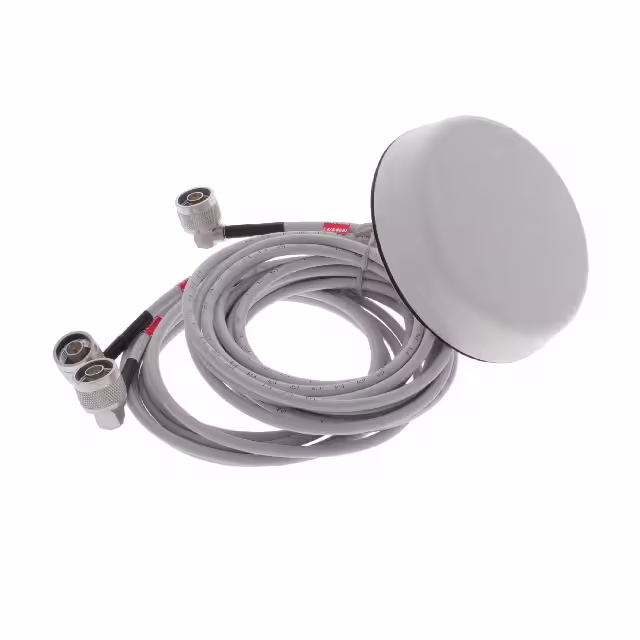

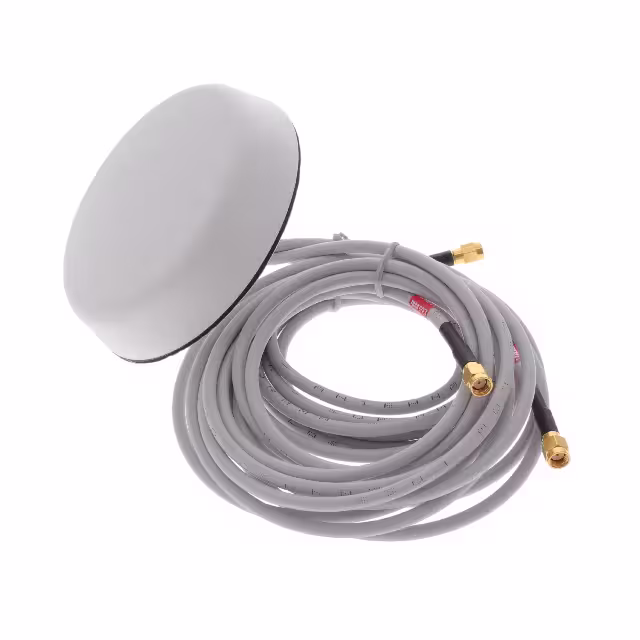

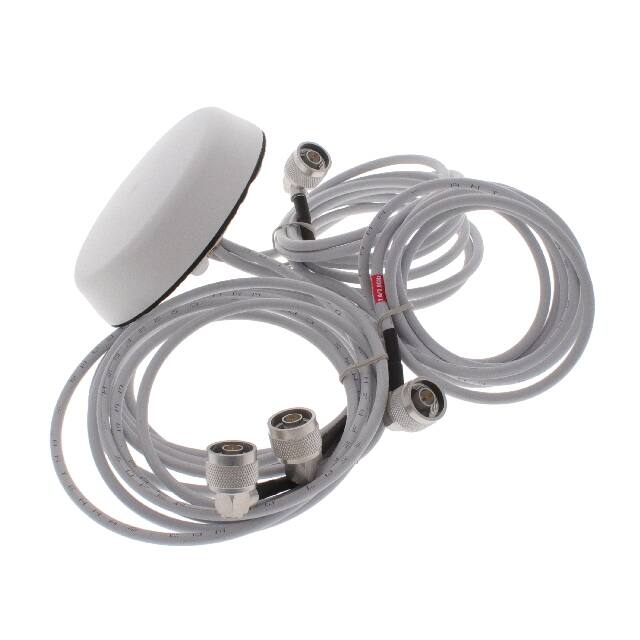

| Image |  |
 |
|
 |
 |
| Part Number | 2344721-3 | 2344721-1 | 2344721-2 | 2344721-5 | 2344721-6 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bag | Bulk |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi | Cellular, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz | 2.44GHz, 5.45GHz |
| Frequency Range | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Dome | Dome | Dome | Dome | Dome |
| Number of Bands | 2 | 2 | 2 | 2 | 2 |
| VSWR | - | - | - | - | - |
| Return Loss | - | - | - | - | - |
| Gain | 4dBi, 6dBi | 4dBi, 6dBi | 4dBi, 6dBi | 4dBi, 6dBi | 4dBi, 6dBi |
| Power - Max | 10 W | 10 W | 10 W | 10 W | 10 W |
| Features | Cable - 2m | Cable - 2m | Cable - 2m | Cable - 2m | Cable - 2m |
| Termination | RP-SMA | RP-SMA | RP-SMA | N Type | N Type |
| Ingress Protection | IP66 | IP66 | IP66 | IP66 | IP66 |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Ceiling Mount | Ceiling Mount | Ceiling Mount | Ceiling Mount | Ceiling Mount |
| Height (Max) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) |
| Applications | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi | LTE, UMTS, WCDMA, Wi-Fi |
