TE Connectivity AMP Connectors 2195729-2
- Part No.:
- 2195729-2
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- RF Antennas
- Package:
- Description:
- EXTERNAL FULL BAND ANTENNA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2195729-2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- -
- Packaging:
- Bag
- Product Status:
- Active
- RF Family/Standard:
- Cellular, Navigation
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz
- Frequency Range:
- 790MHz ~ 960MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
- Antenna Type:
- Blade, Tilt
- Number of Bands:
- 6
- VSWR:
- 3
- Return Loss:
- -
- Gain:
- 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi
- Power - Max:
- -
- Features:
- -
- Termination:
- SMA Male
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Connector Mount
- Height (Max):
- 5.350" (135.89mm)
- Applications:
- 5G, GNSS, LTE

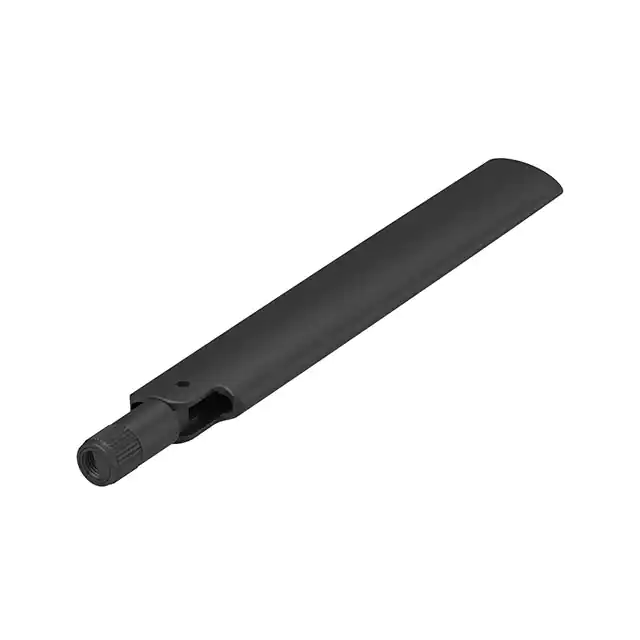

| Image |  |
 |
| Part Number | 2195729-2 | 2195729-1 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | - | - |
| Packaging | Bag | Bulk |
| Product Status | Active | Obsolete |
| RF Family/Standard | Cellular, Navigation | Cellular, Navigation |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz | 875MHz, 1.515GHz, 2.205GHz, 3.55GHz, 4.7GHz, 5.5375GHz |
| Frequency Range | 790MHz ~ 960MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | 790MHz ~ 960MHz, 1.42GHz ~ 1.61GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Blade, Tilt | Blade, Tilt |
| Number of Bands | 6 | 6 |
| VSWR | 3 | 3 |
| Return Loss | - | - |
| Gain | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi | 3dBi, 0.98dBi, 0dBi, 1dBi, 1.5dBi, 2.4dBi |
| Power - Max | - | - |
| Features | - | - |
| Termination | SMA Male | SMA Male |
| Ingress Protection | - | - |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Connector Mount | Connector Mount |
| Height (Max) | 5.350" (135.89mm) | 5.350" (135.89mm) |
| Applications | 5G, GNSS, LTE | Galileo, GLONASS, GNSS, GPS, LTE, UMTS, WCDMA |
