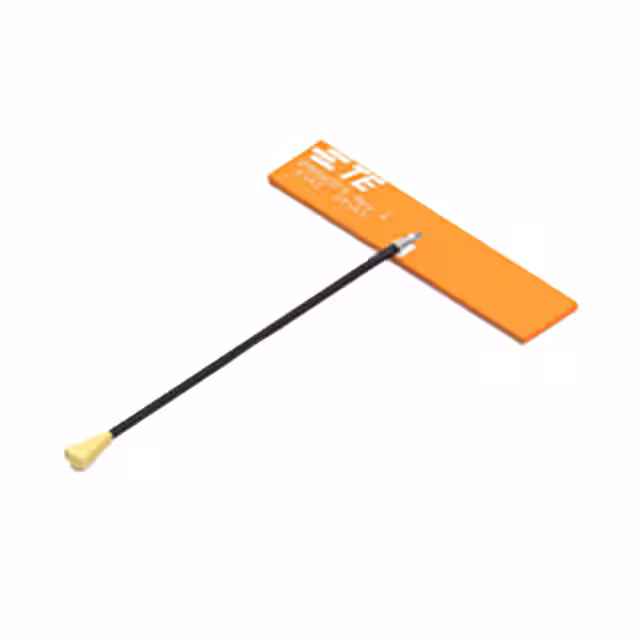

TE Connectivity AMP Connectors 2118909-2

Name: 2118909-2
Brand: TE Connectivity AMP Connectors
SKU: 2118909-2
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: 2118909-2

Manufacturer:: TE Connectivity AMP Connectors

Category:: RF Antennas

Package:

Description:: WLAN TRIPLE BAND ANT MHF CABLE 2

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

2118909-2 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity AMP Connectors

Series:: -

Packaging:: Bag

Product Status:: Active

RF Family/Standard:: Bluetooth, WiFi

Frequency Group:: UHF (2GHz ~ 3GHz), SHF (f > 4GHz)

Frequency (Center/Band):: 2.45GHz, 5.5125GHz, 6.525GHz

Frequency Range:: 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz

Antenna Type:: PCB Trace

Number of Bands:: 3

VSWR:: 2, 2.5

Return Loss:: -

Gain:: 3.2dBi, 3.2dBi, 3.2dBi

Power - Max:: -

Features:: Cable - 268.78mm

Termination:: MHF

Ingress Protection:: -

Grade:: -

Qualification:: -

Mounting Type:: Adhesive

Height (Max):: 0.039" (1.00mm)

Applications:: 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™

Part Number	2118909-6	2118909-1	2118909-8	2118909-2	2118909-4
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Series	-	-	-	-	-
Packaging	Bag	Bag	Bag	Bag	Bag
Product Status	Active	Active	Active	Active	Active
RF Family/Standard	Bluetooth, WiFi	Bluetooth, WiFi	Bluetooth, WiFi	Bluetooth, WiFi	Bluetooth, WiFi
Frequency Group	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)	2.45GHz, 5.5125GHz, 6.525GHz	2.5GHz, 5.5125GHz, 6.525GHz	2.52GHz, 5.5125GHz, 6.525GHz	2.45GHz, 5.5125GHz, 6.525GHz	2.45GHz, 5.5125GHz, 6.525GHz
Frequency Range	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.3GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.34GHz ~ 2.7GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz
Antenna Type	PCB Trace	PCB Trace	PCB Trace	PCB Trace	PCB Trace
Number of Bands	3	3	3	3	3
VSWR	2, 2.5	2, 2.5	2, 2.5	2, 2.5	2, 2.5
Return Loss	-	-	-	-	-
Gain	3.3dBi, 3.3dBi, 3.3dBi	4.2dBi, 4.2dBi, 4.2dBi	3.3dBi, 3.3dBi, 3.3dBi	3.2dBi, 3.2dBi, 3.2dBi	3.2dBi, 3.2dBi, 3.2dBi
Power - Max	-	-	-	-	-
Features	Cable - 370mm	Cable - 120mm	Cable - 60mm	Cable - 268.78mm	Cable - 115.8mm
Termination	MHF	MHF	MHF	MHF	MHF
Ingress Protection	-	-	-	-	-
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
Mounting Type	Adhesive	Adhesive	Adhesive	Adhesive	Adhesive
Height (Max)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)
Applications	802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™	802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™
