TE Connectivity AMP Connectors 1-2309605-1
- Part No.:
- 1-2309605-1
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- RF Antennas
- Package:
- Description:
- RF ANT 829MHZ/2.2GHZ MOD CAB 3M
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
1-2309605-1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Obsolete
- RF Family/Standard:
- -
- Frequency Group:
- Wide Band
- Frequency (Center/Band):
- 829MHz, 2.2GHz
- Frequency Range:
- 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
- Antenna Type:
- Module
- Number of Bands:
- 2
- VSWR:
- -
- Return Loss:
- -
- Gain:
- -
- Power - Max:
- -
- Features:
- Cable - 3m
- Termination:
- SMA Male (2)
- Ingress Protection:
- IP33
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Adhesive
- Height (Max):
- 1.929" (49.00mm)
- Applications:
- -
| Image |  |
 |
 |
 |
 |

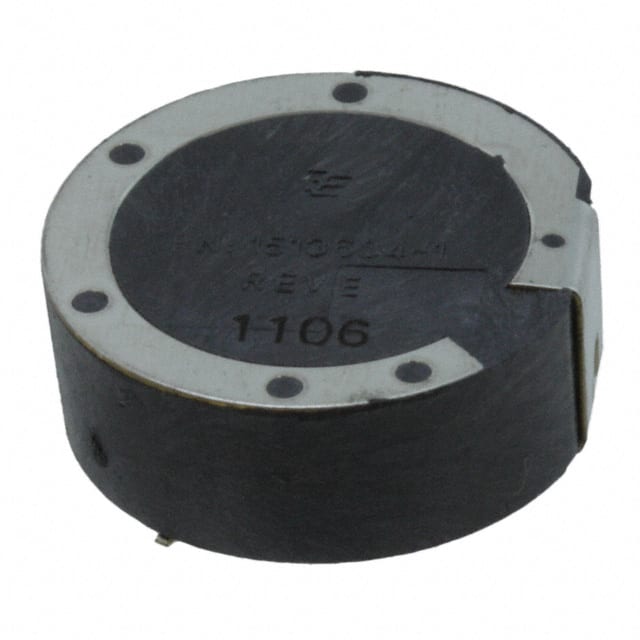

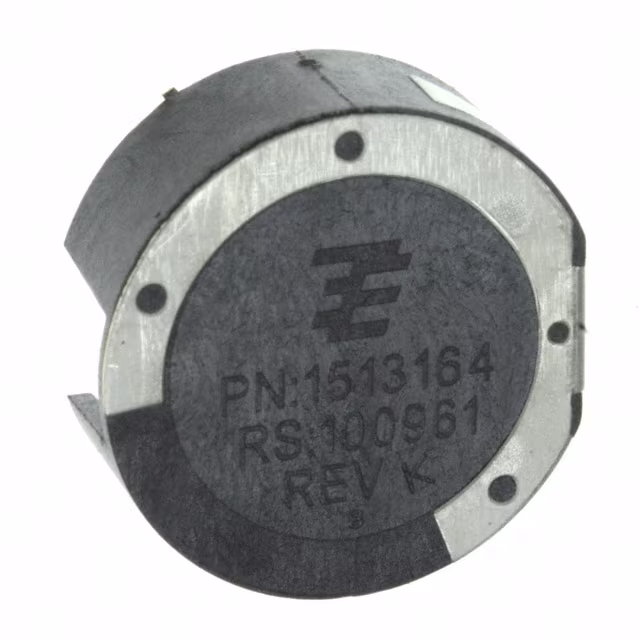

| Part Number | 1513504-1 | 1513472-5 | 1513634-1 | 1513164-1 | 1513273-1 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | - | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | Navigation | 802.15.4, Bluetooth, WiFi | 802.15.4, Cellular |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (1GHz ~ 2GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 2.4GHz | 2.4GHz, 5.5GHz | 1.575GHz | 2.4GHz, 5.5GHz | 892MHz, 1.85GHz |
| Frequency Range | 2.4GHz ~ 2.483.5GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | 1.565GHz ~ 1.585GHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz |
| Antenna Type | Puck | Module | Puck | Molded | PCB Trace |
| Number of Bands | 1 | 2 | 1 | 2 | 2 |
| VSWR | 2.5 | 3 | 3 | 2.5 | 3 |
| Return Loss | - | - | - | - | - |
| Gain | 2dBi | 3dBi | 0dBi | 4dBi | 2dBi |
| Power - Max | 10 W | 10 W | 10 W | 10 W | 10 W |
| Features | - | Cable - 360mm | - | - | - |
| Termination | Solder | U.FL (UMCC), I-PEX MHF1 | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Panel Mount | Surface Mount | Surface Mount | Through Hole |
| Height (Max) | 0.238" (6.05mm) | 0.394" (10.00mm) | 0.238" (6.05mm) | 0.236" (6.00mm) | 0.595" (15.11mm) |
| Applications | Bluetooth, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ | GPS | Bluetooth, WLAN, Zigbee™ | CDMA, GSM, LTE, ZigBee™ |
- Include Parts
- Popular Search
The following parts include "1-2309605-1" in Silicon Labs 1-2309605-1.
- Part Number
- Manufacturer
- Package
- Description
- 2450AT18A0100001E Johanson Technology Inc. RF ANT 2.4GHZ CHIP SOLDER SMD
- AMCA31-2R450G-S1F-T3 Abracon LLC RF ANT 2.4GHZ CHIP SOLDER SMD
- 2450AT45A0100001E Johanson Technology Inc. RF ANT 2.4GHZ CHIP SOLDER SMD
- 2450AT42E010B001E Johanson Technology Inc. RF ANT 2.4GHZ CHIP SOLDER SMD
- ANT-433-HETH TE Connectivity Linx RF ANT 433MHZ HELICAL SLD TH
- PRO-OB-440 Abracon LLC RF ANT 2.4GHZ STAMPED MET SLD
- ANT-868-HETH TE Connectivity Linx 868MHZ HELICAL ANT THROUGH HOLE
- 2450AT18B0100001E Johanson Technology Inc. RF ANT 2.4GHZ CHIP SOLDER SMD
- ANT-916-HETH TE Connectivity Linx RF ANT 916MHZ HELICAL SLD TH
- 2450AT18D0100001E Johanson Technology Inc. RF ANT 2.4GHZ CHIP SOLDER SMD
