TloT-133SE Android 10 Allwinner A133 LCD Controller Board with LVDS and MIPI Output

2026/6/18 11:08:36

The TloT-133SE is a compact Android LCD controller board powered by the Allwinner A133 64-bit quad-core processor. It supports LVDS or optional MIPI display output, multiple touch-screen solutions, five USB interfaces, dual TTL serial ports, GPIO, I²C, Wi-Fi, Ethernet and optional USB 4G expansion. With Android 10 system customization and API support, it is suitable for advertising displays, electronic menu boards, building intercom systems and intelligent self-service terminals.

Core Advantages

Allwinner A133 64-bit quad-core processor
Maximum CPU clock speed up to 1.7 GHz
IMG PowerVR GE8300 GPU
Android 10 operating system
LVDS or optional MIPI display output
HID driver-free touch-screen support
Five USB 2.0 interfaces
Dual TTL serial ports and four GPIO interfaces
Wi-Fi, Ethernet and optional USB 4G support
Android customization and API development support

Cost-Effective Quad-Core Processor

The TloT-133SE is equipped with the Allwinner A133 64-bit quad-core processor, with a maximum clock speed of up to 1.7 GHz. It provides stable processing performance and low power consumption for commercial displays and intelligent terminal applications.

PowerVR Graphics Processing

The integrated IMG PowerVR GE8300 GPU provides reliable graphics rendering and multimedia processing performance, supporting smooth playback of high-definition video, images and commercial advertising content.

Android 10 Operating System

Android 10 provides stable system operation and compatibility with a wide range of Android applications. It is suitable for digital signage software, media players, intercom applications and self-service terminal systems.

Full HD LVDS Display Output

The LVDS version supports single-channel or dual-channel output and can directly drive compatible 50 Hz or 60 Hz LCD panels. The maximum supported LVDS display resolution is 1920 × 1200.

Optional MIPI Display Output

An optional MIPI output version is available for directly connecting compatible MIPI LCD panels. The maximum supported MIPI display resolution is 1920 × 1080. LVDS and MIPI are mutually exclusive configurations.

Broad Touch-Screen Compatibility

The board supports infrared, optical, capacitive, resistive and touch-film solutions. Compatible HID touch-screen devices support driver-free plug-and-play operation without complicated debugging or additional driver installation.

Five USB Interfaces

1 × USB 2.0 OTG interface
4 × USB 2.0 HOST interfaces
USB flash drive support
Keyboard and mouse support
Camera and peripheral support

Rich Peripheral Expansion

2 × TTL serial ports
TTL configurable as RS232
4 × GPIO interfaces
1 × I²C interface
Touch-panel controller support

Flexible Network Communication

The TloT-133SE supports 10/100 Mbps auto-negotiation Ethernet and built-in Wi-Fi compatible with IEEE 802.11 b/g/n. Wired and wireless connection options enable flexible content transmission and terminal deployment.

Optional USB 4G Expansion

An external USB 4G communication module can be connected according to project requirements, enabling mobile network access in locations where wired Ethernet or Wi-Fi is unavailable or inconvenient.

Integrated Audio Functions

The board includes a dual-channel speaker amplifier with a default output of 2 × 6 W at 8 Ω. A microphone input interface is also available for voice interaction, intercom and intelligent terminal applications.

Android System Customization

Android system customization services, system APIs and reference code can be provided to support upper-layer application development, hardware control, function integration and customized APP deployment.

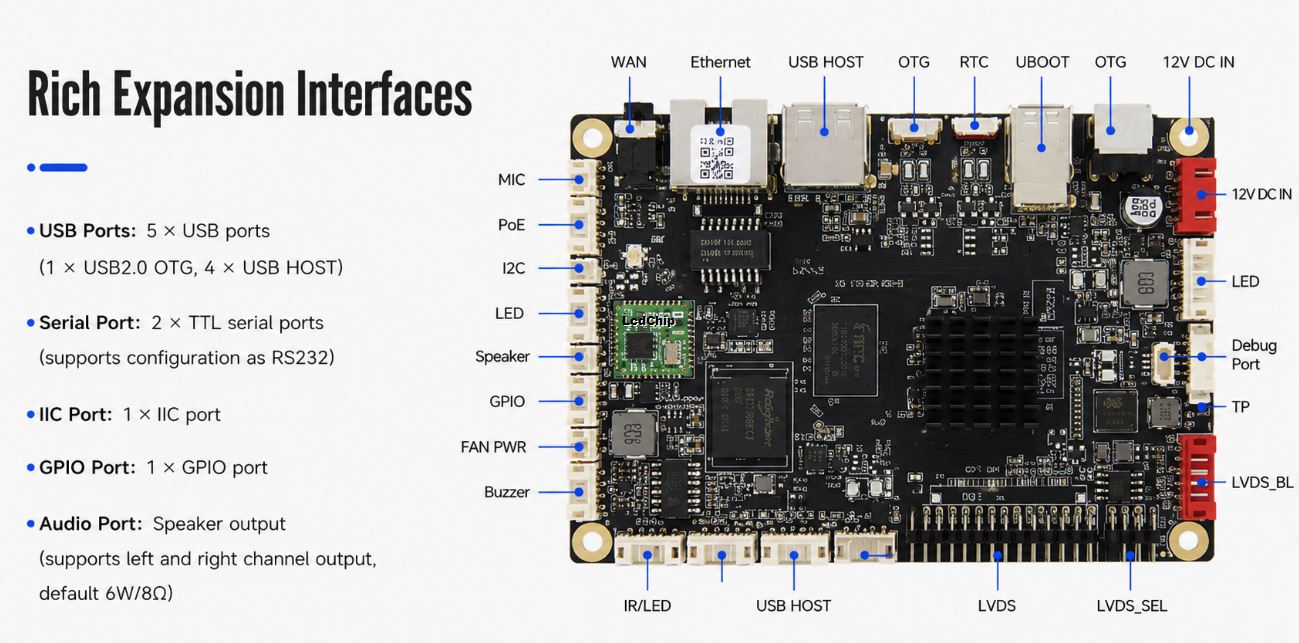

TloT-133SE Allwinner A133 Android LCD controller board interface diagram

TloT-133SE Android LCD Controller Board Interface and Expansion Port Diagram

Core Configuration

Model	TloT-133SE
CPU	Allwinner A133 64-bit quad-core processor with a maximum clock speed of up to 1.7 GHz
GPU	IMG PowerVR GE8300 graphics processor
Operating System	Android 10.0
Memory	1 GB standard memory
Storage	8 GB standard onboard storage

Display Interfaces

LVDS Output	1 × single-channel or dual-channel LVDS output capable of directly driving compatible 50 Hz or 60 Hz LCD panels. The maximum supported resolution is 1920 × 1200.
MIPI Output	Optional MIPI output capable of directly driving compatible MIPI LCD panels with resolutions up to 1920 × 1080
Output Selection	LVDS and MIPI are mutually exclusive configurations and must be selected according to the LCD panel requirements
Touch-Screen Support	Supports compatible infrared, optical, capacitive, resistive and touch-film solutions
HID Touch Support	Supports plug-and-play operation with compatible driver-free HID touch-screen devices

Expansion Interfaces

USB 2.0 OTG	1 × USB 2.0 OTG interface
USB 2.0 HOST	4 × USB 2.0 HOST interfaces for connecting USB flash drives, keyboards, mice, cameras and other compatible peripherals
Serial Ports	2 × TTL serial ports, configurable as RS232 according to project and communication requirements
GPIO	4 × GPIO interfaces for external signal input, output and device control
I²C Interface	1 × I²C interface for connecting an I²C touch-panel controller or other compatible I²C peripherals

Network Support

Wireless Network	Built-in Wi-Fi supporting IEEE 802.11 b/g/n protocols
Wired Network	Supports 10/100 Mbps auto-negotiation Ethernet
4G Expansion	Supports connection to an optional external USB 4G communication module

Audio Configuration

Speaker Output	Stereo left and right channel speaker output with an integrated 2 × 6 W at 8 Ω audio amplifier
Microphone Input	Supports MIC IN for compatible microphone, intercom and voice interaction applications

Software and Development

System Customization	Android 10 system customization is available according to project requirements
API Support	System APIs and reference code can be provided for secondary application development
APP Development	Supports upper-layer application development, peripheral control, system integration and customized software deployment

Other Specifications

Board Dimensions	100 × 75 mm
RTC	Supports RTC real-time clock
System Upgrade	Supports local firmware upgrades via USB flash drive
Power Supply	12 V DC, 3 A
Remote Control	Infrared remote control supported

Typical Applications

Commercial advertising displays
Electronic menu boards
Electronic information and water-sign displays
Building intercom systems
Self-service terminals
Touch-screen information terminals
Retail commercial display equipment
Embedded Android display systems

Note: LVDS and MIPI are alternative configurations and cannot be used simultaneously. Touch-screen compatibility, serial-port mode, USB 4G support, Android customization and interface functions may vary depending on the firmware version, PCB revision and customized project requirements. Please confirm the exact LCD, touch-screen and communication requirements before ordering.
