TDK-Lambda PFH500F-28-000-R
- Part No.:
- PFH500F-28-000-R
- Manufacturer:
- TDK-Lambda
- Category:
- AC DC Converters
- Package:
- Three Quarter Brick
- Datasheet:
-
PFH500F-28-000-R.pdf
- Description:
- AC/DC CONVERTER 28V 504W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PFH500F-28-000-R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK-Lambda
- Series:
- PFH500F (500W)
- Package/Case:
- Three Quarter Brick
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 265 VAC
- Voltage - Output 1:
- 28V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 18A
- Power (Watts):
- 504 W
- Applications:
- ITE (Commercial)
- Features:
- Adjustable Output, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input
- Operating Temperature:
- -40°C ~ 100°C (With Derating)
- Efficiency:
- 92%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 4.00" L x 2.40" W x 0.53" H (101.6mm x 61.0mm x 13.5mm)
- Approval Agency:
- CE, cURus, VDE
- Standard Number:
- -

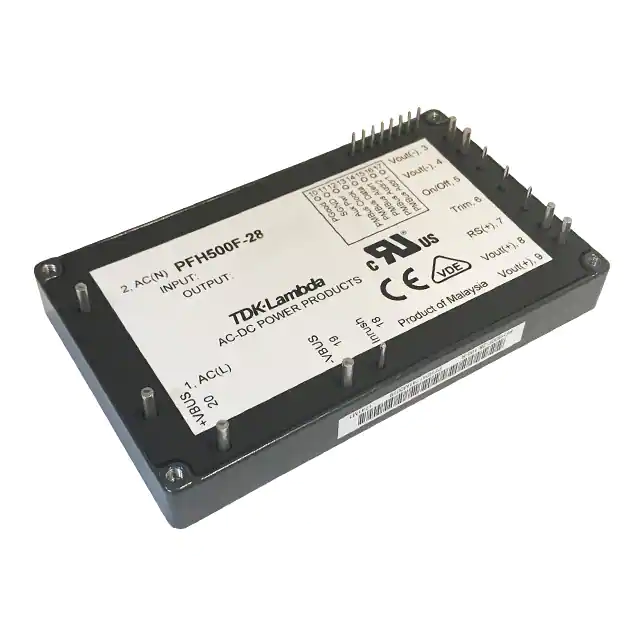

| Image | -Series.jpg) |
|
 |
|
|
| Part Number | PFH500F-28-000-R | PFH500F-28-100-R | PFH500F-12-1D0-R | PFH500F-12-000-R | PFH500F-12-0D0-R |
| Manufacturer | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda | TDK-Lambda |
| Series | PFH500F (500W) | PFH500F (500W) | PFH500F (500W) | PFH500F (500W) | PFH500F (500W) |
| Package/Case | Three Quarter Brick | Three Quarter Brick | Full Brick | Full Brick | Full Brick |
| Packaging | Bulk | Bulk | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 265 VAC | 85 ~ 265 VAC | 85 ~ 265 VAC | 85 ~ 265 VAC | 85 ~ 265 VAC |
| Voltage - Output 1 | 28V | 28V | 12V | 12V | 12V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 18A | 18A | 42A | 42A | 42A |
| Power (Watts) | 504 W | 504 W | 504 W | 504 W | 504 W |
| Applications | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) |
| Features | Adjustable Output, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Adjustable Output, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Adjustable Output, Baseplate, Load Sharing, I2C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input | Adjustable Output, Baseplate, I2C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input | Adjustable Output, Baseplate, Load Sharing, I2C Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input |
| Operating Temperature | -40°C ~ 100°C (With Derating) | -40°C ~ 100°C (With Derating) | -40°C ~ 100°C (With Derating) | -40°C ~ 100°C (With Derating) | -40°C ~ 100°C (With Derating) |
| Efficiency | 92% | 92% | 92% | 92% | 92% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 4.00" L x 2.40" W x 0.53" H (101.6mm x 61.0mm x 13.5mm) | 4.00" L x 2.40" W x 0.53" H (101.6mm x 61.0mm x 13.5mm) | 4.00" L x 2.40" W x 0.53" H (101.6mm x 61.0mm x 13.5mm) | 4.00" L x 2.40" W x 0.53" H (101.6mm x 61.0mm x 13.5mm) | 4.00" L x 2.40" W x 0.53" H (101.6mm x 61.0mm x 13.5mm) |
| Approval Agency | CE, cURus, VDE | CE, cURus, VDE | CE, UKCA | CE, UKCA | CE, UKCA |
| Standard Number | - | - | 60950-1; 62368-1 | 60950-1; 62368-1 | 60950-1; 62368-1 |
