TS-982SE Android 14 4K Commercial Display Board with 8K Video Decoding

Flagship Quad-Core Performance

The TS-982SE uses the Amlogic T982 64-bit processor with four ARM Cortex-A55 CPU cores and a maximum clock speed of up to 2.0 GHz. It provides strong processing performance for multitasking, multimedia playback and interactive commercial display applications.

Native Android 14 Platform

The native Android 14 operating system provides modern application compatibility, stable operation and flexible software deployment. Android system customization, open APIs and reference code can be provided to accelerate upper-layer APP development and reduce project implementation time.

Powerful Graphics Processing

The integrated ARM Mali-G52 MP2 graphics processor provides high-performance image rendering and multimedia processing. It supports smooth playback of ultra-high-definition videos, commercial advertising content and interactive graphical interfaces.

4K Output and 8K Hardware Decoding

The platform supports 4K video output at up to 60 frames per second and hardware decoding of H.265 and H.264 video at up to 8K at 30 frames per second. It also supports 1080p at 30 fps video encoding for compatible application requirements.

V-by-One Direct 4K Panel Output

One V-by-One output interface can directly drive compatible 4K LCD panels, reducing the need for additional display conversion boards. This makes the TS-982SE suitable for integrated ultra-high-definition commercial displays.

4K HDMI Input

One HDMI input supports external video signals at resolutions up to 4K × 2K at 60 Hz. It can connect computers, set-top boxes, cameras and other compatible signal sources for content switching, presentation and display linkage.

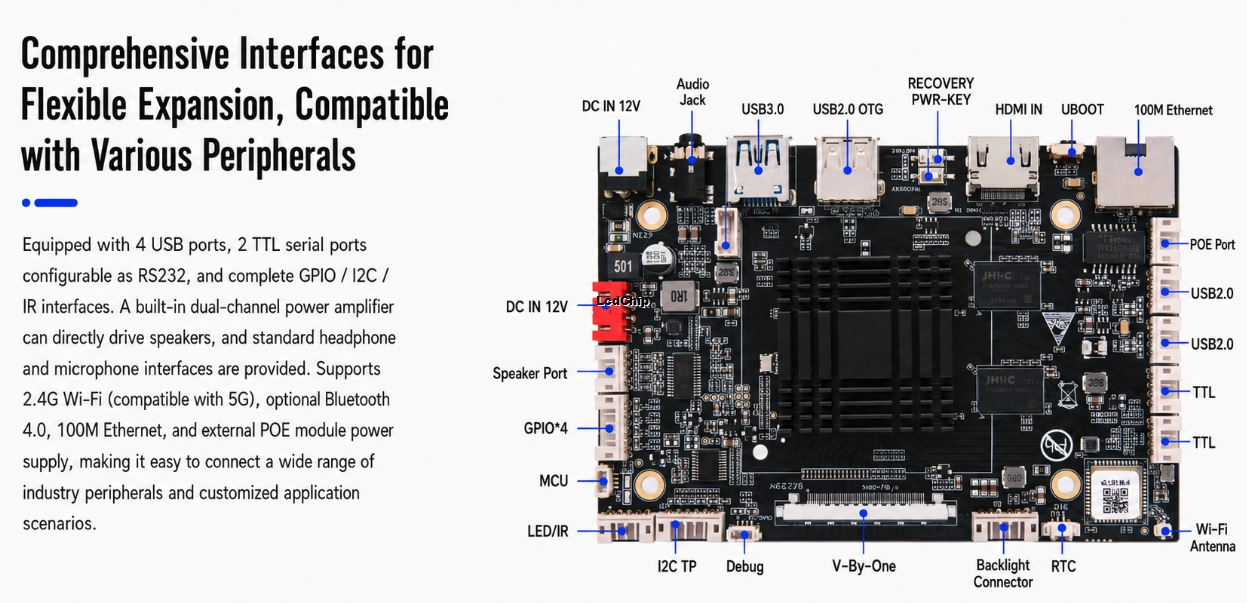

Rich Peripheral Expansion

• 1 × USB 2.0 OTG port
• 1 × USB 3.0 HOST port
• 2 × USB 2.0 HOST ports
• 2 × TTL serial ports
• 1 × DEBUG interface
• 4 × GPIO interfaces
• 1 × I²C interface
• 1 × infrared interface

Flexible Serial Communication

Two TTL serial interfaces are available for equipment control, debugging and data communication. The serial ports can be configured or converted to RS232 according to project and peripheral connection requirements.

Integrated Audio Interfaces

The board integrates a dual-channel audio amplifier for directly driving compatible speakers. It also provides a headphone output and microphone input for voice interaction, multimedia playback and intelligent terminal applications.

Wired and Wireless Connectivity

The TS-982SE supports 10/100 Mbps auto-negotiation Ethernet and built-in 2.4 GHz Wi-Fi. A 5 GHz-compatible wireless configuration and Bluetooth 4.0 function can be provided depending on the selected hardware configuration.

Optional PoE Module Support

An external PoE module can be connected for compatible project configurations, helping simplify installation wiring and power deployment in digital signage, information display and self-service terminal applications.

Driver-Free Touch-Screen Support

The board is compatible with infrared, capacitive, resistive, optical and touch-film solutions. Compatible HID touch devices support plug-and-play operation without separate drivers or complicated debugging.

Designed for Continuous Operation

The compact 125 × 85 mm board supports 12 V power input, low-power standby and an operating temperature range of 0°C to 60°C. RTC scheduling, USB upgrades, electrostatic protection and short-circuit protection help support stable operation in commercial environments.

Flexible Memory and Storage

The standard configuration includes 2 GB of memory and 16 GB of onboard storage. A 4 GB memory option and storage capacities from 8 GB to 64 GB are available according to project requirements.
