TS-6320SE Android / OpenHarmony Commercial Display Board with LVDS and Optional 4K HDMI
The TS-6320SE is a compact high-definition controller board developed for commercial advertising displays and intelligent embedded terminals. Powered by the GK6320V100 processor, it supports Android 9.0 or OpenHarmony 5.1, default Full HD LVDS output, optional 4K HDMI output, Wi-Fi, Ethernet, USB, serial communication, RTC and audio functions. Its compact 100 × 80 mm design makes it suitable for digital signage, electronic information displays, shelf screens and self-service terminals.
Core Advantages
- Optional 4K at 60 Hz HDMI output
- Android 9.0 or OpenHarmony 5.1 support
- Default Full HD LVDS output
- Compact 100 × 80 mm board design
- Three USB 2.0 expansion ports
- Cost-effective commercial display solution
Core Hardware Configuration
The TS-6320SE is powered by the GK6320V100 processor featuring a 64-bit quad-core Cortex-A55 architecture. It provides reliable processing performance with low power consumption for commercial display and embedded terminal applications.
Graphics Processing
The integrated Mali-450 GPU provides strong graphics processing and video decoding capabilities, supporting smooth playback of high-definition videos, images and multimedia advertising content.
Dual Operating System Compatibility
The TS-6320SE supports both Android 9.0 and OpenHarmony 5.1. Customers can benefit from the extensive Android application ecosystem while also preparing for integration with the open-source OpenHarmony platform.
High-Definition Display Output
The board is available with default LVDS output or optional HDMI output. The HDMI version supports resolutions up to 4K at 60 Hz, while the LVDS interface can directly drive compatible Full HD LCD panels at up to 1920 × 1080 at 60 Hz.
Rich Expansion Interfaces
- 3 × USB 2.0 ports
- 1 × TTL serial port configurable as RS232
- 1 × I²C interface for touch panels or peripherals
- 3.5 mm four-pole headphone output
- RTC real-time clock support
Flexible Network Connectivity
A 10/100 Mbps auto-negotiation Ethernet interface provides stable wired communication, while built-in 2.4 GHz Wi-Fi supports flexible wireless deployment and remote content transmission.
Compact Board Design
With dimensions of only 100 × 80 mm, the TS-6320SE is suitable for embedded installation in space-limited equipment, helping reduce enclosure size and simplify internal structural design.
Cost-Effective Deployment
The compact layout, integrated interfaces and flexible operating system options help reduce system complexity and support efficient deployment across a wide range of commercial display products.

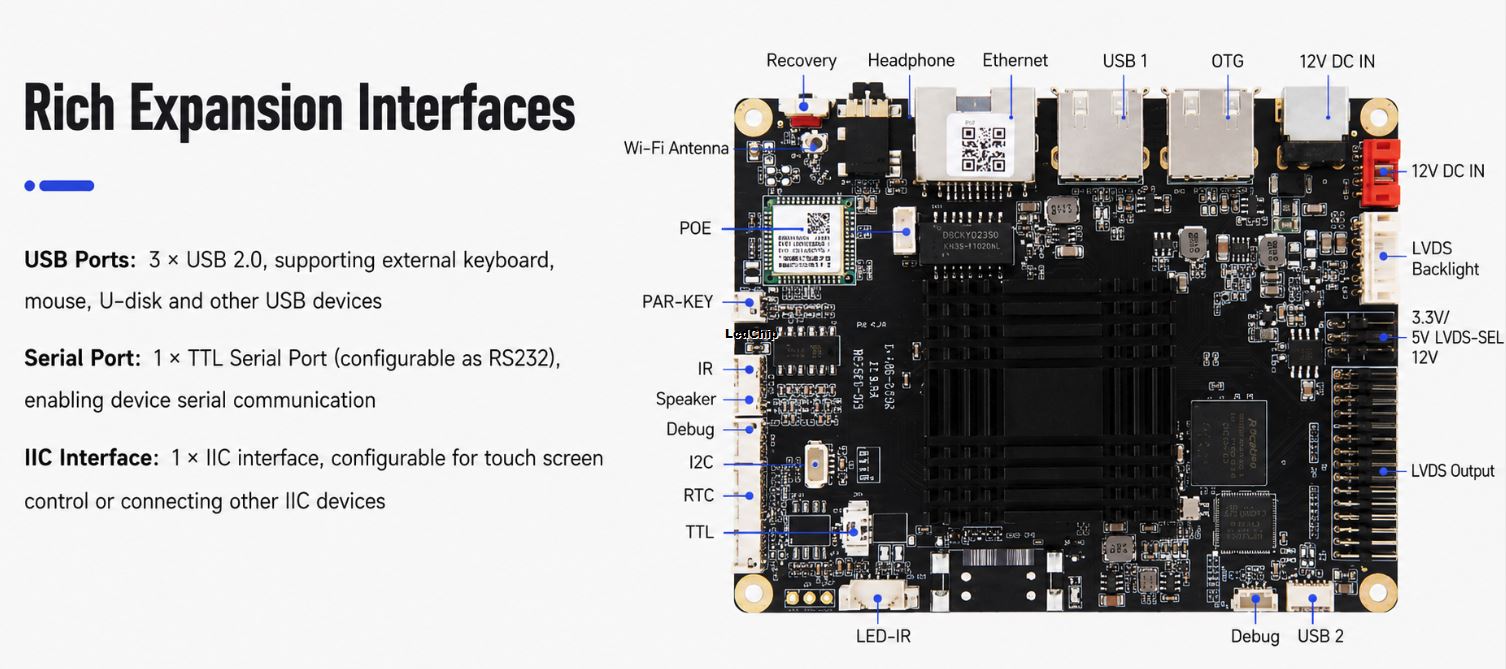

TS-6320SE Commercial Display Controller Board Interface and Expansion Port Diagram
Core Configuration
| Model | TS-6320SE |
|---|---|
| CPU | GK6320V100 64-bit quad-core Cortex-A55 processor |
| GPU | Integrated Mali-450 graphics processor |
| Operating System | Android 9.0 or OpenHarmony 5.1 |
| Memory | 1 GB standard memory |
| Storage | 8 GB standard onboard storage |
Display Interfaces
| HDMI Output Optional | 1 × standard Type-A female HDMI output port supporting resolutions up to 3840 × 2160 at 60 Hz |
|---|---|
| LVDS Output Default | 1 × LVDS output supporting single-channel or dual-channel 6-bit and 8-bit configurations. It can directly drive compatible 50 Hz or 60 Hz LCD panels and supports a maximum resolution of 1920 × 1080 at 60 Hz. |
Expansion Interfaces
| USB | 3 × USB 2.0 ports for connecting USB flash drives, keyboards, mice and other compatible peripherals |
|---|---|
| Serial Port | 1 × TTL serial port, configurable as RS232, for serial communication and external device control |
| I²C Interface | 1 × I²C interface for connecting a touch-screen controller or other compatible I²C peripherals |
Network Support
| Wireless Network | Built-in 2.4 GHz Wi-Fi |
|---|---|
| Wired Network | Supports 10/100 Mbps auto-negotiation Ethernet |
Audio Configuration
| Speaker Output | Stereo left and right channel speaker output. The default output power is 6 W and can be configured to 10 W by changing the corresponding resistor. |
|---|---|
| Headphone Output | 1 × 3.5 mm four-pole headphone interface |
Other Specifications
| Board Dimensions | 100 × 80 mm |
|---|---|
| RTC | Supports RTC real-time clock |
| System Upgrade | Supports local firmware upgrades via USB flash drive |
| Power Supply | 12 V DC, 3 A |
| Remote Control | Infrared remote control supported |
Typical Applications
- Commercial advertising displays
- Electronic information boards
- Digital menu and water-sign displays
- Retail shelf screens
- Mobile digital signage systems
- Information inquiry displays
- Self-service terminals
- Intelligent interactive terminals
